HSE-B500-04H

Active

CUI Devices

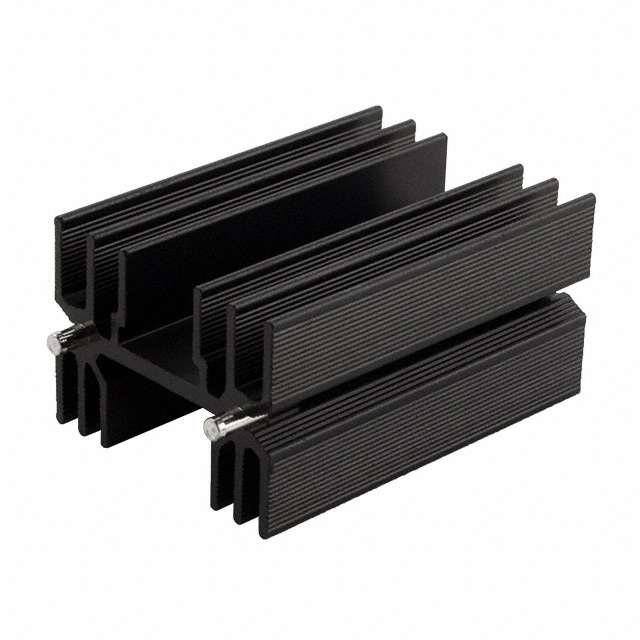

HEATSINK: EXTRUDED; H; TO220; BLACK; L: 50MM; W: 35MM; H: 25.4MM

Search across all available documentation for this part.

Active

CUI Devices

HEATSINK: EXTRUDED; H; TO220; BLACK; L: 50MM; W: 35MM; H: 25.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	HSE-B500-04H

Attachment Method	PC Pin, Bolt On
Fin Height	1 in
Fin Height	25.4 mm
Length [x]	1.969 in
Length [x]	50 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	75 °C, 12.2 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 2.88 °C/W
Thermal Resistance @ Natural	8.05 °C/W
Type	Board Level, Vertical
Width	35 mm
Width [x]	1.378 in

Part	Fin Height	Fin Height	Type	Thermal Resistance @ Forced Air Flow	Package Cooled	Power Dissipation @ Temperature Rise	Material Finish	Length [x]	Length [x]	Thermal Resistance @ Natural	Shape	Attachment Method	Material	Width [x]	Width
CUI Devices HSE-B500-04H	1 in	25.4 mm	Board Level Vertical	2.88 °C/W 200 LFM	TO-220	12.2 W 75 °C	Black Anodized	1.969 in	50 mm	8.05 °C/W	Rectangular Fins	Bolt On PC Pin	Aluminum Alloy	1.378 in	35 mm
