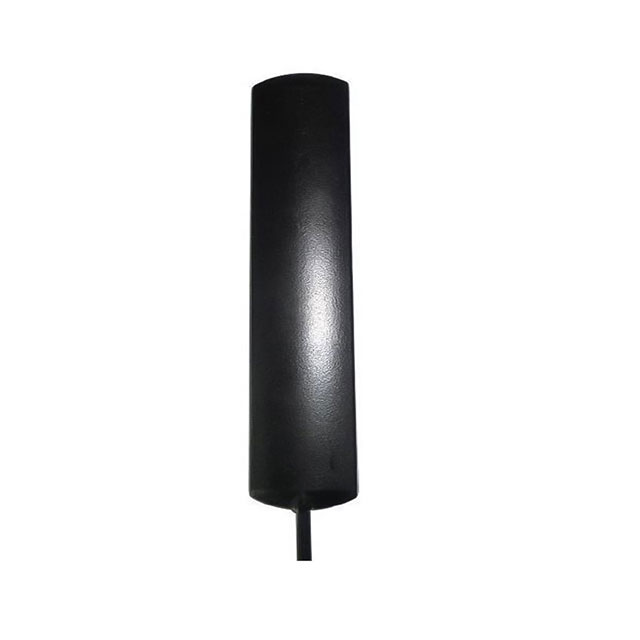

RPC-TB7-11521-1M-X-001
ActiveRaltron Electronics
4G/LTE FLAT BLADE ADHESIVE ANTEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPC-TB7-11521-1M-X-001
ActiveRaltron Electronics
4G/LTE FLAT BLADE ADHESIVE ANTEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPC-TB7-11521-1M-X-001 |
|---|---|
| Antenna Type | Blade |
| Applications | Cellular, LTE, 4G |
| Frequency (Center/Band) | 2.2 GHz, 830 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.69 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 698 MHz |
| Gain | 2 dBic |
| Ingress Protection | IP65 |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| Termination | SMA |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.86 | |
| 10 | $ 7.59 | |||
| 25 | $ 6.74 | |||
| 100 | $ 5.80 | |||
| 250 | $ 5.34 | |||
| 500 | $ 5.06 | |||
| 1000 | $ 4.83 | |||
Description
General part information
RPC-TB7 Series
RF ANTENNA 4G, Cellular, LTE Blade SMA Adhesive
