Q-0D00P0003.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC PL-JK 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D00P0003.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC PL-JK 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D00P0003.75M |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 87.31 | |
| 25 | $ 85.60 | |||
| 50 | $ 83.89 | |||
| 100 | $ 82.18 | |||
| 250 | $ 80.47 | |||
Description
General part information
Q-0D00P0 Series

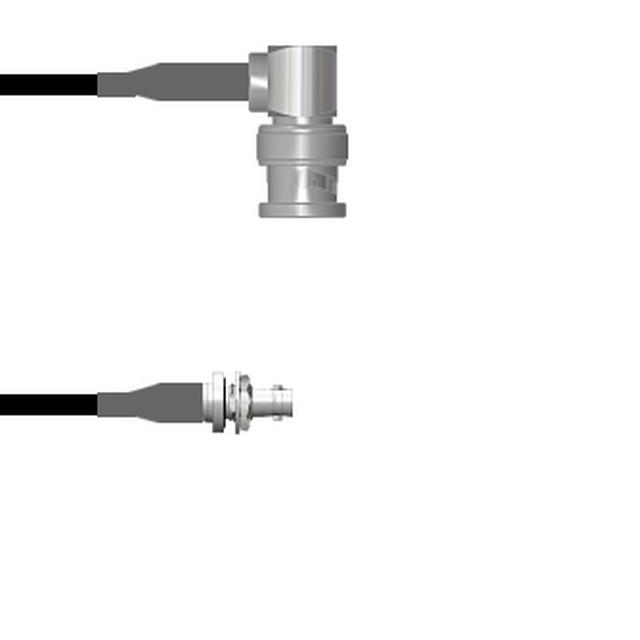

Cable Assembly Coaxial BNC to HD-BNC RG-174 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
