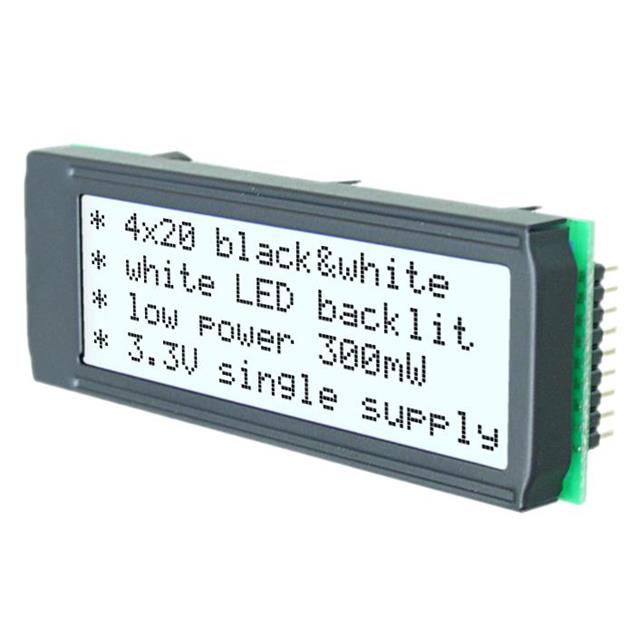

EA DIP205J-4NLW
ActiveDisplay Visions
LCD MOD 80DIG 20X4 TRANSMISV WHT
Deep-Dive with AI
Search across all available documentation for this part.
EA DIP205J-4NLW
ActiveDisplay Visions
LCD MOD 80DIG 20X4 TRANSMISV WHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EA DIP205J-4NLW |
|---|---|
| Background Color | White |
| Backlight | LED - Yellow/Green, LED - Black/White, LED - Blue/White |
| Character Format | w/Cursor |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Controller Type | SSD1803 |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Type | LCD - Color |
| Dot Size [x] | 0.43 mm |
| Dot Size [y] | 0.44 mm |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 75 mm |
| Outline L x W x H [y] | 26.8 mm |
| Outline L x W x H [z] | 13.8 mm |
| Text Color | Black |
| Viewing Area [x] | 61 mm |
| Viewing Area [y] | 19 mm |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.68 | |
| 10 | $ 31.00 | |||
| 100 | $ 29.45 | |||
Description
General part information
EA DIP205 Series
Character Display Module 5 x 8 Dots w/Cursor LCD - Color LED - Yellow/Green, LED - Black/White, LED - Blue/White 4/8-Bit, Parallel, Serial, SPI 75.00mm x 26.80mm x 13.80mm
Documents
Technical documentation and resources
No documents available
