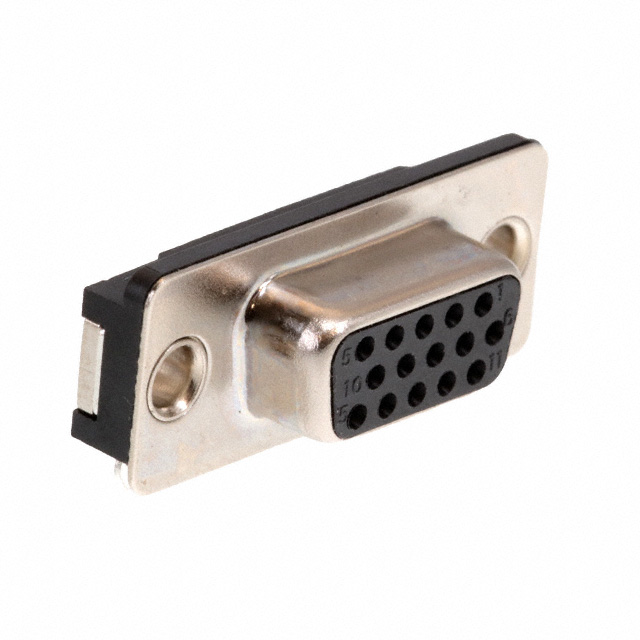

200-015-213L007 - 200-015-213L007

200-015-213L007

Active
MH Connectors

D SUB CONNECTOR, HD15, 15 CONTACTS, RECEPTACLE, SOLDER, DE, 200 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

Specification200-015-213L007
ColorBlack
Connector StyleHigh Density, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)3 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions15
Number of Rows3
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]High Density
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.53
10$ 1.33
25$ 1.27
40$ 1.24
50$ 1.51
100$ 1.19
300$ 1.07
500$ 1.00
1000$ 1.22
2500$ 1.14
NewarkEach 100$ 1.59
250$ 1.44
500$ 1.33
1000$ 1.13
2500$ 1.06

Description

General part information

200-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
