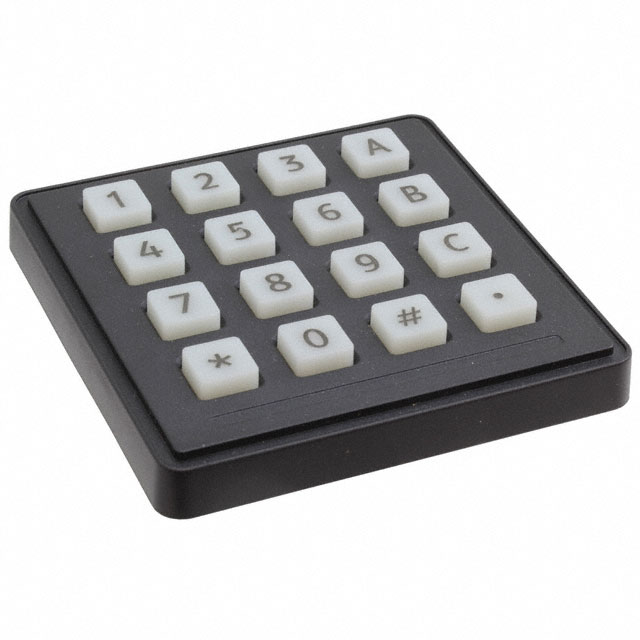

7203-16T0203

Active

STORM INTERFACE

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Search across all available documentation for this part.

Active

STORM INTERFACE

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Technical Specifications

Parameters and characteristics for this part

Specification	7203-16T0203

Approval Agency	CE
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	White
Key Type	Polymer
Legend	Telephone Format, A ~ C
Legend Color	Black
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	4
Mounting Type	Panel Mount, Front or Rear
Number of Keys	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	2000000 Cycles
Output Type	1.81 mOhm
Switch Type	Conductive Rubber
Termination Style	Pin Header

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Type	Key Type	Legend Color	Mounting Type	Legend Type	Approval Agency	Ingress Protection	Termination Style	Illumination	Contact Rating @ Voltage	Number of Keys	Key Color	Operational Life	Output Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Legend	Illumination Voltage (Nominal)
STORM INTERFACE 7203-16T0203	-20 C	60 °C	Conductive Rubber	Polymer	Black	Panel Mount Front or Rear	Fixed	CE	IP65 - Dust Tight Water Resistant	Pin Header	Non-Illuminated	0.05 A 24 VDC	16	White	2000000 Cycles	1.81 mOhm	4	4	Telephone Format A ~ C
STORM INTERFACE 7203-04CW203	-20 C	60 °C	Conductive Rubber	Polymer	Black	Panel Mount Front or Rear	Fixed	CE	IP65 - Dust Tight Water Resistant	Pin Header	Illuminated - White	0.05 A 24 VDC	4	White	2000000 Cycles	1.81 mOhm			Arrows	5 VDC
STORM INTERFACE 7203-16TW203	-20 C	60 °C	Conductive Rubber	Polymer	Black	Panel Mount Front or Rear	Fixed	CE	IP65 - Dust Tight Water Resistant	Pin Header	Illuminated - White	0.05 A 24 VDC	16	White	2000000 Cycles	1.81 mOhm	4	4	Telephone Format A ~ C	5 VDC
STORM INTERFACE 7203-04C0203	-20 C	60 °C	Conductive Rubber	Polymer	Black	Panel Mount Front or Rear	Fixed	CE	IP65 - Dust Tight Water Resistant	Pin Header	Non-Illuminated	0.05 A 24 VDC	4	White	2000000 Cycles	1.81 mOhm			Arrows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
