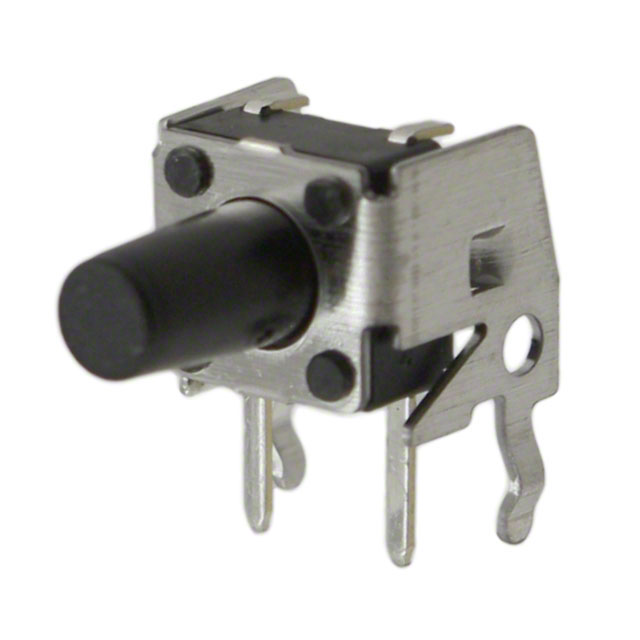

SWT6-R6K

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Outline [y]	Outline [x]	Circuit	Contact Rating @ Voltage	Mounting Type	Actuator Orientation	Termination Style	Actuator Type	Operating Force	Switch Function	Actuator Height off PCB, Vertical [z]	Actuator Length, Right Angle
TT Electronics/BI SWT6-M2BTR	500000 Cycles	Non-Illuminated	-20 C	70 °C	6 mm	6 mm	SPST-NO	0.05 A 12 VDC	Surface Mount	Top Actuated	Gull Wing	Standard	260 gf	Off-Mom	4.3 mm
TT Electronics/BI SWT6-R6K	500000 Cycles	Non-Illuminated	-20 C	70 °C	6.5 mm	7.4 mm	SPST-NO	0.05 A 12 VDC	Through Hole Right Angle	Side Actuated	PC Pin	Standard	100 gf	Off-Mom		8.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
