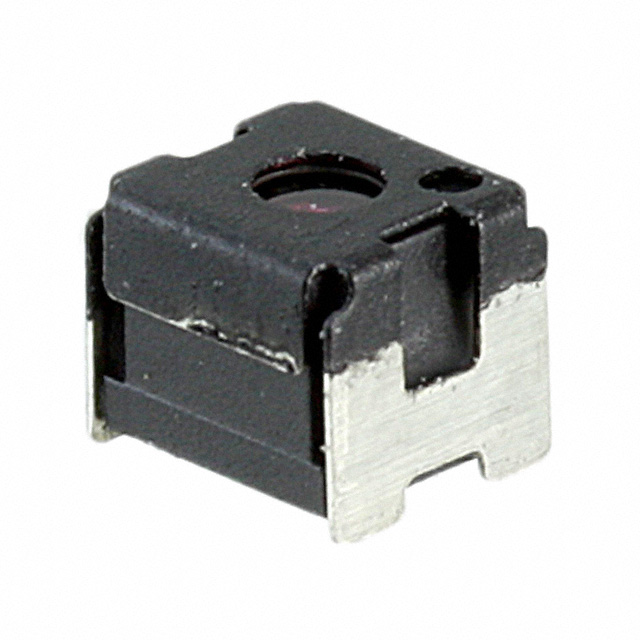

OVM7692-RAAA

Unknown

OmniVision Technologies Inc

SENSOR IMAGE

Search across all available documentation for this part.

Unknown

OmniVision Technologies Inc

SENSOR IMAGE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Sensing Range	Interface	Sensitivity	Sensor Type	Supplied Contents	Operating Temperature [Min]	Operating Temperature [Max]	Active Pixel Array [y]	Active Pixel Array [x]	Package / Case	Type	Frames per Second	Pixel Size [x]	Pixel Size [y]	Voltage - Supply
OmniVision Technologies Inc OVM7692-ETJR-BA01	3 V	2.6 V	OVM7692	VGA	Parallel/Serial	30 fps	CMOS Imaging Color (RGB)	Board(s)
OmniVision Technologies Inc OVM7692-RAAA									-30 °C	70 °C	480	640	25-CSP	CMOS with Processor	30	1.75 µm	1.75 µm	2.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 27.50
	Digi-Reel®	1	$ 27.50
	Tape & Reel (TR)	2500	$ 6.00

General part information

CMOS with Processor Image Sensor 640H x 480V 1.75µm x 1.75µm

Technical documentation and resources
