430801-501
ActiveLaird Thermal Systems, Inc.

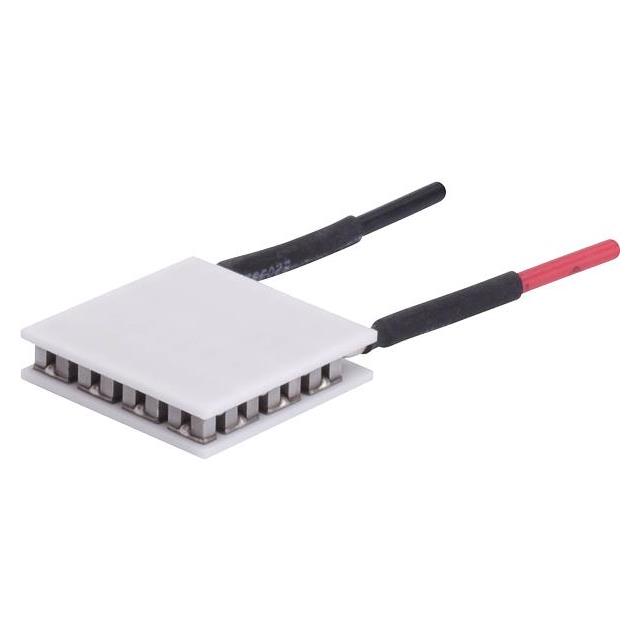

PELTIER CP10,31,05,L,EP,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
430801-501
ActiveLaird Thermal Systems, Inc.
PELTIER CP10,31,05,L,EP,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430801-501 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.2 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 8.2 W |
| Resistance | 820 mOhms |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.04 | |
| 5 | $ 22.69 | |||
| 20 | $ 22.01 | |||
| 40 | $ 21.33 | |||
| 60 | $ 20.78 | |||
| 100 | $ 20.24 | |||
Description
General part information
430801 Series
Peltier Module 8.2W @ 25°C 3.9 A 80°C
