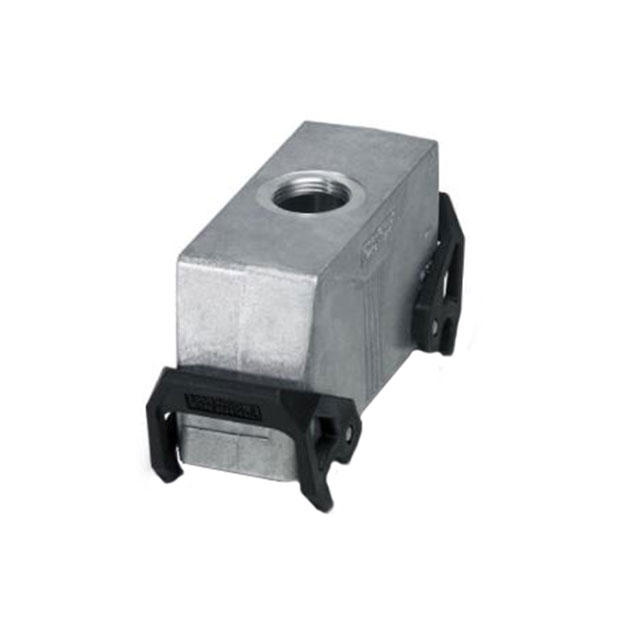

HEAVY DUTY POWER CONNECTORS HC-STA-B24-HLWD- 1TTP16-EL-AL

Search across all available documentation for this part.

Active

Phoenix Contact

HEAVY DUTY POWER CONNECTORS HC-STA-B24-HLWD- 1TTP16-EL-AL

Technical Specifications

Parameters and characteristics for this part

Heavy Duty Power Connectors HC-STA-D07-CHWSCF- 1TGM20-PL-BK

Part	Size	Style	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Housing Material	Lock Location	Thread Size	Features	Housing Color
Phoenix Contact 1412563	B6	Side Entry	IP66/IP69K - Dust Tight Water Resistant Waterproof	125 °C	-40 °C	44 mm	1.732 in	60 mm	72 mm	2.362 in	2.835 in	Hood	Aluminum Die Cast	Locking Clip (1) on Base Bottom	M32	Salt Water Resistant
Phoenix Contact 1412705	B16	Side Entry	IP66 IP67 IP69K	125 °C	-40 °C	44 mm	1.732 in	93.5 mm	76 mm	3.681 "	2.992 in	Hood	Aluminum Die Cast	Locking Clip (2) on Hood	PG21	Salt Water Resistant
Phoenix Contact 1412801	B24	Top Entry	IP66 IP67 IP69K	125 °C	-40 °C	44 mm	1.732 in	120 mm	60 mm	4.724 "	2.362 "	Hood	Aluminum Die Cast	Locking Clip (2) on Hood	PG16	Salt Water Resistant
Phoenix Contact 1419246	D7	Bottom Entry	IP66/IP67	125 °C	-40 °C	24.2 mm	0.953 in	24.2 mm	60.5 mm	0.953 in	2.382 "	Hood - Coupling	Aluminum Die Cast	Locking Clip (1) on Hood Top	M20		Gray
Phoenix Contact 1419261	D7	Bottom Entry	IP66	125 °C	-40 °C	24.2 mm	0.953 in	24.2 mm	76 mm	0.953 in	2.992 in	Hood - Coupling	Polyamide (PA) Nylon	Locking Clip (1) on Hood Top	M20	Cable to Cable Cover	Black
