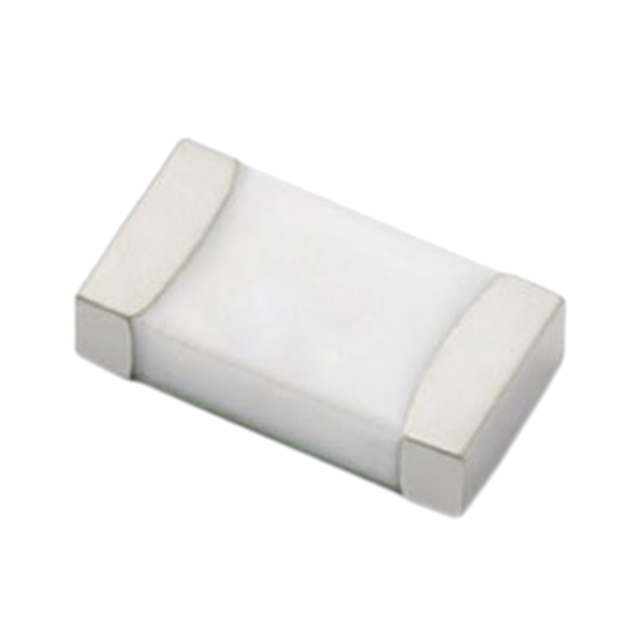

0437005.WRA
ActiveLittelfuse/Commercial Vehicle Products
FUSE CHIP FAST ACTING 5A 63V SMD SOLDER PAD 1206 CERAMIC AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
0437005.WRA
ActiveLittelfuse/Commercial Vehicle Products
FUSE CHIP FAST ACTING 5A 63V SMD SOLDER PAD 1206 CERAMIC AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0437005.WRA |
|---|---|
| Approval Agency | CSA, cURus |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 5 A |
| DC Cold Resistance | 0.0159 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 2.3 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.63 mm |
| Size / Dimension [y] | 0.064 in |
| Size / Dimension [z] | 0.84 mm |
| Size / Dimension [z] | 0.033 " |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0437005A Series
5 A 32 V AC 35 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
