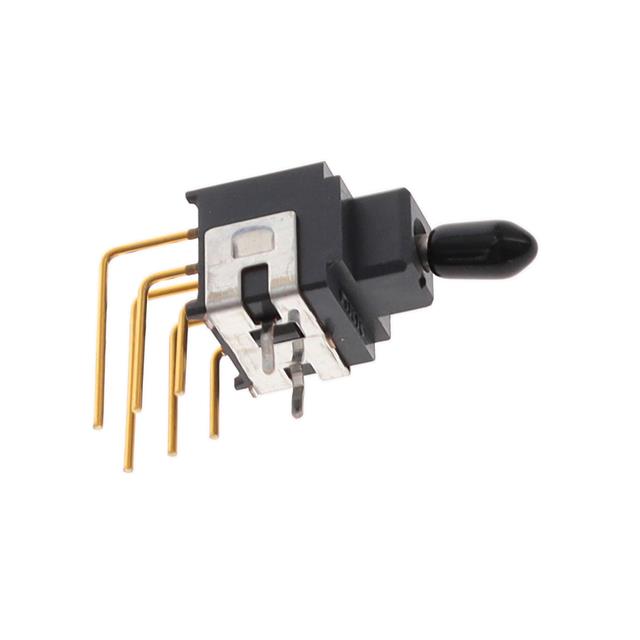

A22JV-JA

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A22JV-JA

Actuator Length [x]	6.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round with Cap
Bushing Thread	Unthreaded, Square
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Black Cap
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Actuator Length [x]	Current Rating (Amps)	Switch Function	Termination Style	Actuator Material	Mounting Type	Actuator Type	Features	Illumination	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Electrical Life	Circuit
NKK Switches A22JV-JA	28 V	6.3 mm	0.4 VA	On-On	PC Pin	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	Standard Round with Cap	Black Cap	Non-Illuminated	Unthreaded Square	-30 ░C	85 °C	28 V	50000 Cycles	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical
