680M21WA4PL201
ActiveMH Connectors
COMBO D-SUB CONN, PLUG, DC-21WA4, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
680M21WA4PL201
ActiveMH Connectors
COMBO D-SUB CONN, PLUG, DC-21WA4, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 680M21WA4PL201 |
|---|---|
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions [custom] | 17 |
| Number of Positions [custom] | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 21WA4, 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
680M21W Series

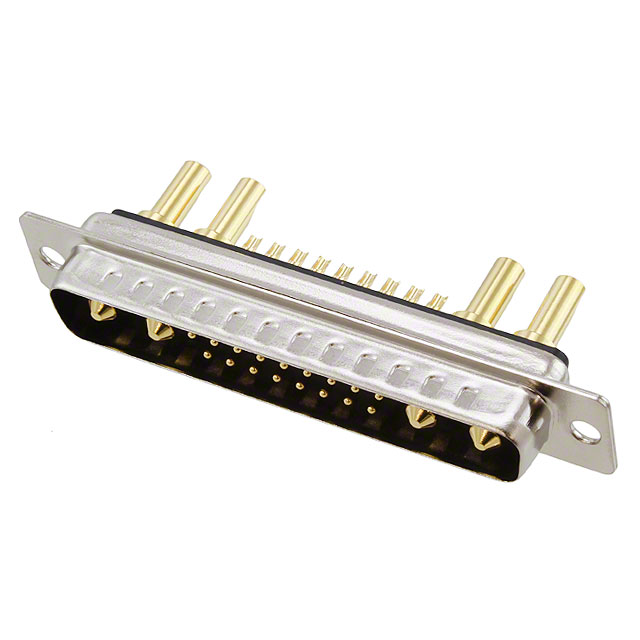

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
