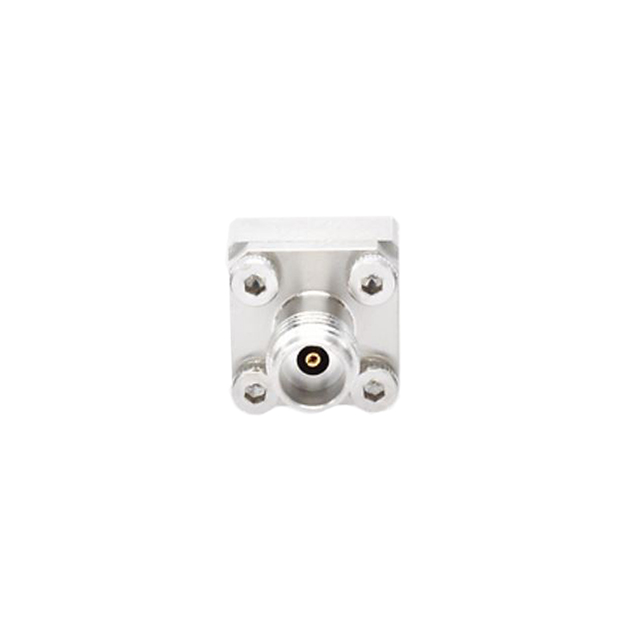

NE02MS001
ActiveWITHWAVE CO LTD
END LAUNCH 2.4 MM CONNECTOR (NAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NE02MS001
ActiveWITHWAVE CO LTD
END LAUNCH 2.4 MM CONNECTOR (NAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NE02MS001 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Compression |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.90 | |
| 10 | $ 58.80 | |||
| 25 | $ 55.70 | |||
| 50 | $ 52.60 | |||
Description
General part information
NE02M Series
2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression
