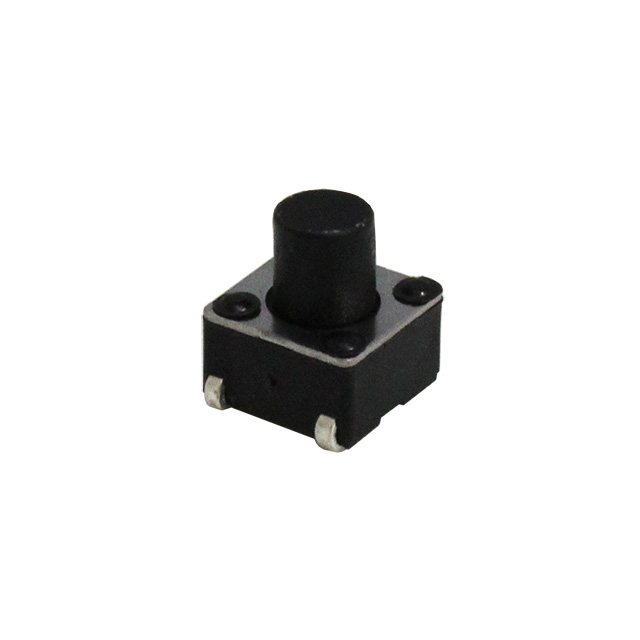

CS11027.0F100J

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CS11027.0F100J

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CS11027.0F100J

Actuator Height off PCB, Vertical [z]	7 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

CS11027 Series

Part	Actuator Material	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Switch Function	Termination Style	Mounting Type	Illumination	Switch Travel	Circuit	Outline [y]	Outline [x]	Actuator Type	Actuator Orientation	Operating Force
CIT Relay and Switch CS11027.0F160	Nylon 6/6 Polyamide (PA66)	7 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	Gull Wing	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Standard	Top Actuated
CIT Relay and Switch CS11027.5F260J	Nylon 4/6 Polyamide (PA46)	7.5 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated	260 gf
CIT Relay and Switch CS11027.5F160J	Nylon 4/6 Polyamide (PA46)	7.5 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated
CIT Relay and Switch CS11027.0F160J	Nylon 4/6 Polyamide (PA46)	7 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated
CIT Relay and Switch CS11027.5F100J	Nylon 4/6 Polyamide (PA46)	7.5 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated	100 gf
CIT Relay and Switch CS11027.0F260J	Nylon 4/6 Polyamide (PA46)	7 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated	260 gf
CIT Relay and Switch CS11027.0F100J	Nylon 4/6 Polyamide (PA46)	7 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	J Lead	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated	100 gf
CIT Relay and Switch CS11027.5F100	Nylon 4/6 Polyamide (PA46)	7.5 mm	85 °C	-40 °C	0.05 A 50 VDC	Off-Mom	Gull Wing	Surface Mount	Non-Illuminated	0.25 mm	SPST-NO	6 mm	6 mm	Plunger for Cap	Top Actuated	100 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.40
		10	$ 0.38
		25	$ 0.36
		100	$ 0.31
		250	$ 0.28
	Digi-Reel®	1	$ 0.40
		10	$ 0.38
		25	$ 0.36
		100	$ 0.31
		250	$ 0.28
	Tape & Reel (TR)	700	$ 0.19
		1400	$ 0.17
		3500	$ 0.16

Description

General part information

CS11027 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
