28563.6
ActiveConta-Clip, Inc.

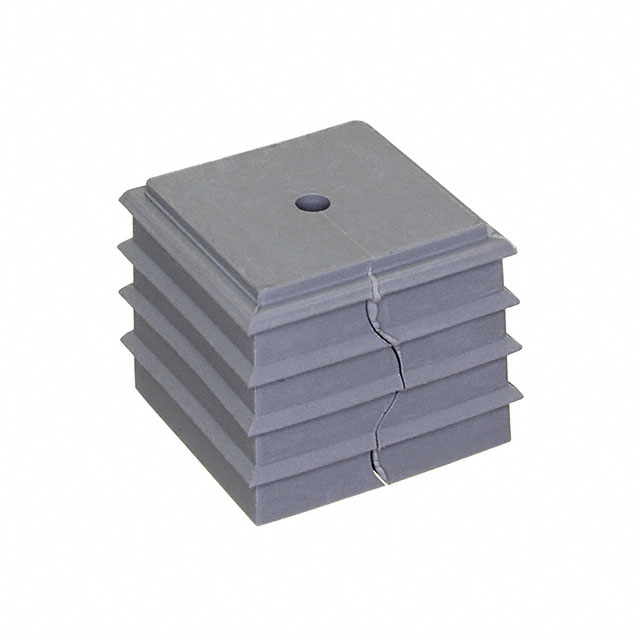

KDS SMALL SEALING SLEEVE 3MM
Deep-Dive with AI
Search across all available documentation for this part.
28563.6
ActiveConta-Clip, Inc.
KDS SMALL SEALING SLEEVE 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28563.6 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 3 mm |
| Diameter - Inside [Max] [diameter] | 0.118 in |
| Diameter - Inside [Min] [diameter] | 0.079 in |
| Diameter - Inside [Min] [diameter] | 2 mm |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 V-0 |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.66 | |
| 5 | $ 2.26 | |||
| 10 | $ 2.11 | |||
| 25 | $ 1.95 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.62 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.50 | |||
Description
General part information
28563 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.079" ~ 0.118" (2.00mm ~ 3.00mm) Gray
Documents
Technical documentation and resources
No documents available
