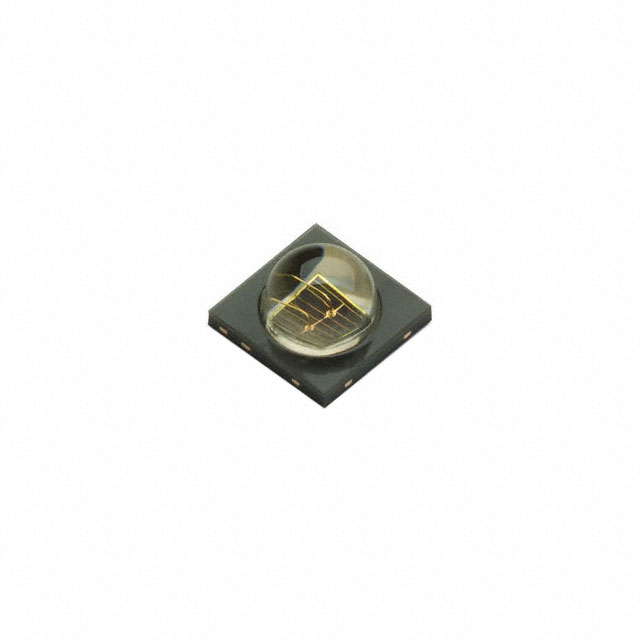

ARE1-8FD0-00000

Active

Broadcom Limited

HIGH POWER IRLED, 850NM, 150DEG

Search across all available documentation for this part.

Active

Broadcom Limited

HIGH POWER IRLED, 850NM, 150DEG

Technical Specifications

Parameters and characteristics for this part

Specification	ARE1-8FD0-00000

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	150 mW/sr
Type	Infrared (IR)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength	850 nm

Part	Mounting Type	Type	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Orientation	Viewing Angle	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle [custom]	Radiant Intensity (Ie) Min @ If
Broadcom Limited ARE1-8FD0-00000	Surface Mount	Infrared (IR)	1.8 V	1 A	100 °C	-40 °C	3-SMD No Lead	Top View	150 °	850 nm	150 mW/sr
Broadcom Limited ARE1-8FC0-00000	Surface Mount	Infrared (IR)	1.8 V	1 A	85 °C	-40 °C	3-SMD No Lead	Top View	150 °	850 nm	100 mW/sr
Broadcom Limited ARE1-9930-00000	Surface Mount	Infrared (IR)	3 V	1 A	85 °C	-40 °C	3-SMD No Lead	Top View		940 nm	320 mW/sr	90 °
Broadcom Limited ARE1-8930-00000	Surface Mount	Infrared (IR)	3.2 V	1 A	85 °C	-40 °C	3-SMD No Lead	Top View		850 nm	630 mW/sr	90 °
Broadcom Limited ARE1-9F30-00000	Surface Mount	Infrared (IR)	3 V	1 A	85 °C	-40 °C	3-SMD No Lead	Top View	150 °	940 nm			160 mW/sr
Broadcom Limited ARE1-99D0-00000	Surface Mount	Infrared (IR)	1.8 V	1 A	85 °C	-40 °C	3-SMD No Lead	Top View		940 nm		90 °	160 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 1.8V 1A 150mW/sr @ 1A 150° 3-SMD, No Lead
