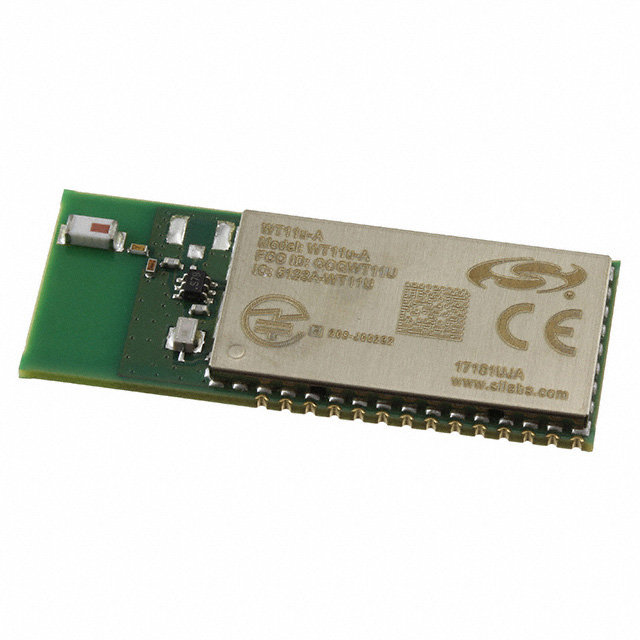

WT11U-E-AI56C

Obsolete

Silicon Labs

RF TXRX MODULE SMD

Search across all available documentation for this part.

Obsolete

Silicon Labs

RF TXRX MODULE SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Serial Interfaces	Sensitivity	Frequency	Current - Transmitting	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Protocol	RF Family/Standard	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]
Silicon Labs WT11U-E-AI56IAP	Module	Surface Mount
Silicon Labs WT11U-E-HCI21001	Module	Surface Mount	UART USB	-86 dBm	2.4 GHz	110 mA	Antenna Not Included U.FL	85 °C	-40 °C	36 mA	Bluetooth v2.1 +EDR	Bluetooth	17 dBm	2.7 V	3.6 V
Silicon Labs WT11U-E-AI55	Module	Surface Mount	UART USB	-86 dBm	2.4 GHz	110 mA	Antenna Not Included U.FL	85 °C	-40 °C	36 mA	Bluetooth v2.1 +EDR	Bluetooth	16.5 dBm	2.7 V	3.6 V
Silicon Labs WT11U-E-AI56C	Module	Surface Mount
Silicon Labs WT11U-A-AI56IAPC	Module	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Transceiver Module Surface Mount

Technical documentation and resources

No documents available
