DC0025/01-TG-A486G-0.3-2A

Active

t-Global Technology

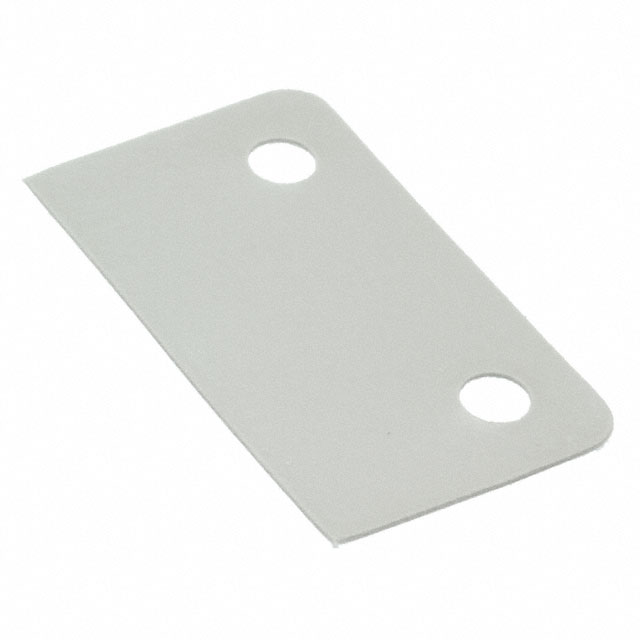

THERM PAD 36.83X21.29MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 36.83X21.29MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Thickness [x]	Thickness [x]	Color	Usage	Shape	Backing, Carrier	Thermal Conductivity	Shelf Life	Type	Material	Outline [y]	Outline [x]	Thickness [custom]	Thickness [custom]	Adhesive	Thickness	Thickness	Shelf Life Start
t-Global Technology DC0025/01-TI900-0.12-0	0.005 in	0.127 mm	White	SIP	Rectangular	Viscose	1.8 W/m-K	24 Months	Die-Cut Pad Sheet	Silicone	21.29 mm	36.83 mm
t-Global Technology DC0025/01-TG-A373F-0.25-2A			Yellow	SIP	Rectangular		1.4 W/m-K	12 Months	Die-Cut Pad Sheet		21.29 mm	36.83 mm	0.254 mm	0.01 in	Adhesive - Both Sides
t-Global Technology DC0025/01-TI900-0.12-2A	0.005 in	0.127 mm	White	SIP	Rectangular	Viscose	1.8 W/m-K	24 Months	Die-Cut Pad Sheet	Silicone	21.29 mm	36.83 mm			Adhesive - Both Sides
t-Global Technology DC0025/01-TG-A482K-0.1-0			Red	SIP	Rectangular		2.3 W/m-K	24 Months	Die-Cut Pad Sheet	Silicone	21.29 mm	36.83 mm				0.1 mm	0.0039 in	Date of Purchase
t-Global Technology DC0025/01-TG-A486G-0.3-2A			Gray	SIP	Rectangular		6 W/m-K	12 Months	Die-Cut Pad Sheet		21.29 mm	36.83 mm	0.305 mm	0.012 "	Adhesive - Both Sides			Date of Purchase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
