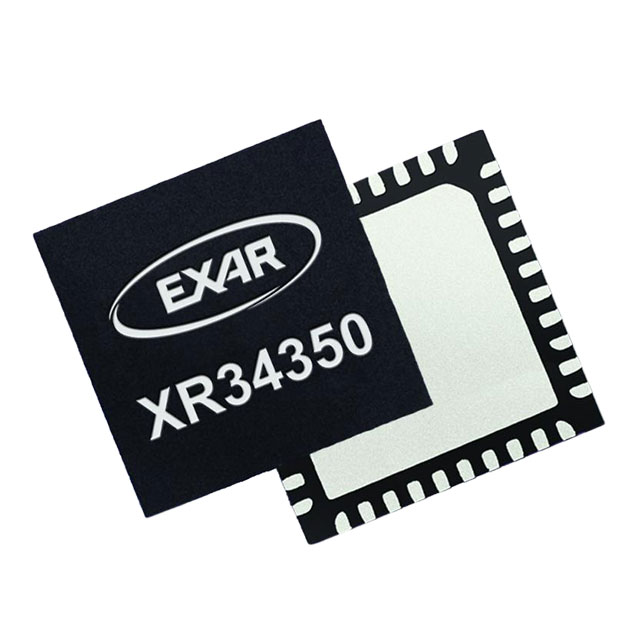

XR34350ILTR

Active

MaxLinear, Inc.

IC TXRX FULL/HALF 1/1, 3/5 40QFN

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC TXRX FULL/HALF 1/1, 3/5 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	XR34350ILTR

Data Rate	20 Mbps, 1 Mbps
Duplex	Half, Full
Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	1, 5
Number of Drivers/Receivers [custom]	3, 1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	40-VFQFN Exposed Pad
Protocol	RS485, RS422, RS232
Receiver Hysteresis	300 mV
Supplier Device Package	40-QFN (6x6)
Type	Transceiver
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	3.135 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Duplex	Protocol	Data Rate	Mounting Type	Receiver Hysteresis	Supplier Device Package	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
MaxLinear, Inc. XR34350ILTR	5.25 V	3.135 V	1 5	1 3	Full Half	RS232 RS422 RS485	1 Mbps 20 Mbps	Surface Mount	300 mV	40-QFN (6x6)	Transceiver	40-VFQFN Exposed Pad	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 7.37

General part information

1/1, 3/5 Transceiver Full, Half RS232, RS422, RS485 40-QFN (6x6)
