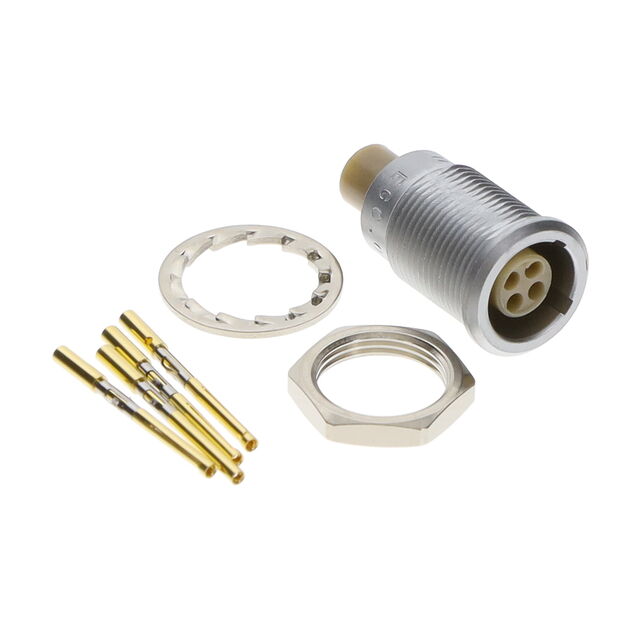

EGC.0B.304.CYM

Active

LEMO

CONN RCPT FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	EGC.0B.304.CYM

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded
Termination	Crimp

Part	Current Rating (Amps)	Contact Material	Orientation	Mounting Feature	Number of Positions	Insert Material	Fastening Type	Primary Material	Shell Size - Insert	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Material Flammability Rating	Ingress Protection	Contact Finish - Mating	Connector Type	Shielding	Termination
LEMO EGC.0B.304.CLL	7 A	Bronze	C	Bulkhead - Rear Side Nut	4	Polyetheretherketone (PEEK)	Push-Pull	Metal	304	Brass	-55 °C	250 °C	Silver	59 Áin	1.5 Ám	Chrome	UL94 V-0	IP50	Gold	Receptacle Female Sockets	Shielded
LEMO EGC.0B.302.CLL	10 A	Bronze	C	Bulkhead - Rear Side Nut	2	Polyetheretherketone (PEEK)	Push-Pull	Metal	302	Brass	-55 °C	250 °C	Silver	59 Áin	1.5 Ám	Chrome	UL94 V-0	IP50	Gold	Receptacle Female Sockets	Shielded
LEMO EGC.0B.304.CYM	7 A	Bronze	C	Bulkhead - Rear Side Nut	4	Polyetheretherketone (PEEK)	Push-Pull	Metal	304	Brass	-55 °C	250 °C	Silver	59 Áin	1.5 Ám	Chrome	UL94 V-0	IP50	Gold	Receptacle Female Sockets	Shielded	Crimp
LEMO EGC.0B.309.CLL	2 A	Bronze	C	Bulkhead - Rear Side Nut	9	Polyetheretherketone (PEEK)	Push-Pull	Metal	309	Brass	-55 °C	250 °C	Silver	59 Áin	1.5 Ám	Chrome	UL94 V-0	IP50	Gold	Receptacle Female Sockets	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Crimp
