17K132-K00S5

Active

Rosenberger

HEADER 6GHZ -65℃~+155℃ 50Ω COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

Rosenberger

HEADER 6GHZ -65℃~+155℃ 50Ω COAXIAL CONNECTORS (RF) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	17K132-K00S5

Adapter Series	SMA to SMP
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Insertion Loss	0.12 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Impedance	Conversion Type	Adapter Series	Mating Cycles	Frequency - Max [Max]	Style	Adapter Type	Center Contact Plating	Center Contact Material	Dielectric Material	Convert To (Adapter End)	Center Gender	Convert From (Adapter End)	Insertion Loss	Body Material	Body Finish
Rosenberger 17K132-K00S5	155 °C	-65 ░C	Free Hanging (In-Line)	Snap-On Threaded	50 Ohms	Between Series	SMA to SMP	500	6000 MHz	Straight	Jack to Jack	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Female Socket SMP Jack	Female to Female	Female Socket SMA Jack	0.12 dB	Beryllium Copper Stainless Steel	Gold; Passivated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

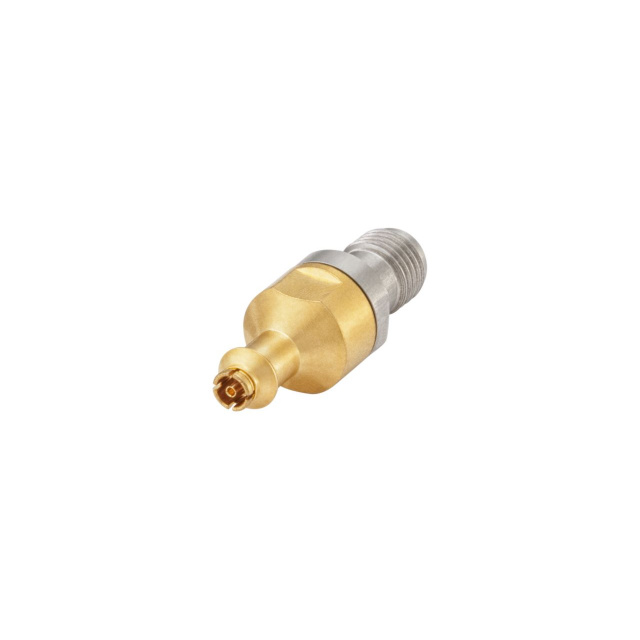

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
