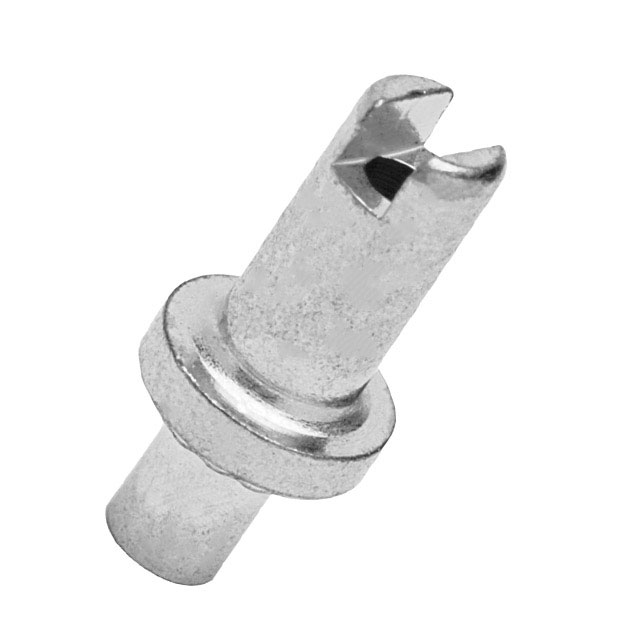

H3070-01

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3070-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Flange Diameter [Max] [diameter]	0.159 in
Flange Diameter [Max] [diameter]	4.04 mm
Flange Diameter [Min] [diameter]	0.153 in
Flange Diameter [Min] [diameter]	3.88 mm
Insulation	Non-Insulated
Length - Above Board [Max] [x]	6.63 mm
Length - Above Board [Max] [x]	0.261 in
Length - Above Board [Min] [x]	0.246 "
Length - Above Board [Min] [x]	6.25 mm
Length - Below Flange [Max] [x]	0.099 in
Length - Below Flange [Max] [x]	2.51 mm
Length - Below Flange [Min] [x]	2.39 mm
Length - Below Flange [Min] [x]	0.094 in
Length - Overall [Max]	0.36 in
Length - Overall [Max]	9.15 mm
Length - Overall [Min]	8.64 mm
Length - Overall [Min]	0.34 in
Mounting Hole Diameter [Max] [diameter]	0.083 "
Mounting Hole Diameter [Max] [diameter]	2.11 mm
Mounting Hole Diameter [Min] [diameter]	2.03 mm
Mounting Hole Diameter [Min] [diameter]	0.08 "
Mounting Type	Through Hole
Number of Turrets	Single
Staking Side OD [Max] [diameter]	0.079 in, 2.01 mm
Staking Side OD [Min] [diameter]	0.076 in, 1.93 mm
Terminal Type	Fork, Single End, Hollow
Termination	Swage

Part	Contact Material	Length - Below Flange [Max] [x]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Terminal Type	Flange Diameter [Min] [diameter]	Flange Diameter [Max] [diameter]	Flange Diameter [Max] [diameter]	Flange Diameter [Min] [diameter]	Length - Above Board [Max] [x]	Length - Above Board [Min] [x]	Length - Above Board [Min] [x]	Length - Above Board [Max] [x]	Number of Turrets	Board Thickness	Board Thickness	Staking Side OD [Min] [diameter]	Staking Side OD [Max] [diameter]	Length - Overall [Min]	Length - Overall [Min]	Length - Overall [Max]	Length - Overall [Max]	Insulation	Mounting Type	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Contact Finish	Termination
Harwin Inc. H3070-01	Brass Alloy	0.099 in	2.51 mm	2.39 mm	0.094 in	Fork Hollow Single End	0.153 in	0.159 in	4.04 mm	3.88 mm	6.63 mm	0.246 "	6.25 mm	0.261 in	Single	1.6 mm	0.063 in	0.076 in 1.93 mm	0.079 in 2.01 mm	8.64 mm	0.34 in	0.36 in	9.15 mm	Non-Insulated	Through Hole	2.03 mm	0.08 "	0.083 "	2.11 mm	Tin	Swage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.33
Newark	Each	1000	$ 0.42

General part information

Terminal Turret Connector Single End, Fork, Hollow 0.246" ~ 0.261" (6.25mm ~ 6.63mm) Tin
