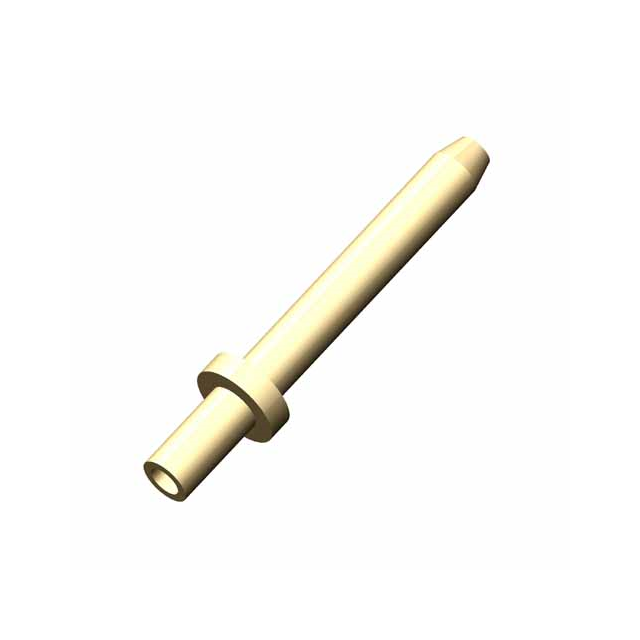

H2177-05

Obsolete

Harwin Inc.

CONN PC PIN CIRC 0.041DIA GOLD

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN PC PIN CIRC 0.041DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	H2177-05

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Gold
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange [x]	0.255 in
Length - Above Flange [x]	6.48 mm
Length - Below Flange [x]	0.08 in
Length - Below Flange [x]	2.03 mm
Length - Overall [x]	0.355 in
Length - Overall [x]	9.02 mm
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Terminal Style	Length - Below Flange [x]	Length - Below Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Length - Above Flange [x]	Length - Above Flange [x]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Mounting Type	Termination	Board Thickness	Board Thickness	Contact Finish	Contact Material	Terminal Type
Harwin Inc. H2177-05	Single End	0.08 in	2.03 mm	1.77 mm	0.07 in	0.045 "	1.14 mm	0.041 in	1.04 mm	0.355 in	9.02 mm	0.255 in	6.48 mm	0.041 in	1.04 mm	Non-Insulated	Through Hole	Swage	1.6 mm	0.063 in	Gold	Brass	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia

Technical documentation and resources
