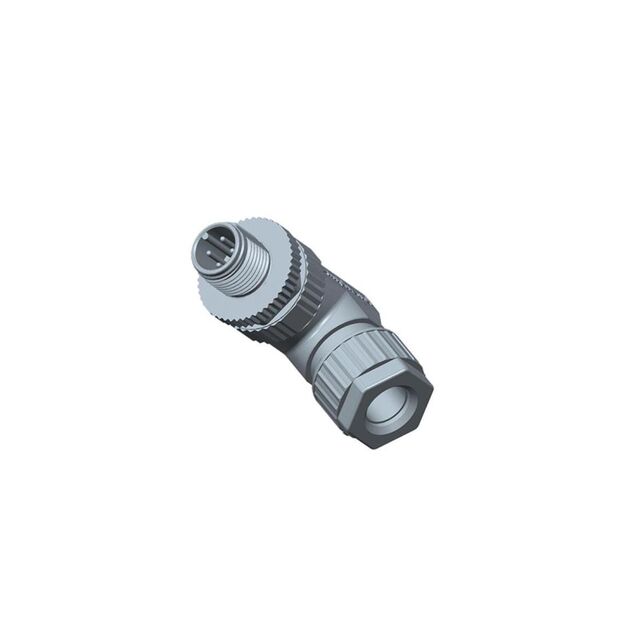

M12A-04BMMC-SR7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, CRIMP, FIEL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, CRIMP, FIEL

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-04BMMC-SR7001

Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Max] [custom]	8 mm
Cable Opening [Min] [custom]	4 mm
Cable Opening [Min] [custom]	0.157 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VAC

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Connector Type	Color	Mounting Type	Primary Material	Orientation	Shielding	Number of Positions	Termination	Backshell Material, Plating	Features	Voltage Rating	Shell Size - Insert	Contact Finish - Mating	Current Rating (Amps)	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Material
Amphenol LTW M12A-04BMMC-SR7001	4 mm	0.315 in	0.157 in	8 mm	Male Pins Plug	Black	Free Hanging (In-Line) Right Angle	Plastic	A	Unshielded	4	Crimp	Thermoplastic	Backshell	250 VAC	M12-4	Gold	4 A	Thermoplastic	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Copper Alloy
Amphenol LTW M12A-04BMMC-SL7001	4 mm	0.315 in	0.157 in	8 mm	Male Pins Plug	Black	Free Hanging (In-Line)	Plastic	A	Unshielded	4	Crimp	Thermoplastic	Backshell	250 VAC	M12-4	Gold	4 A	Thermoplastic	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Crimp
