H8502-05

Active

Harwin Inc.

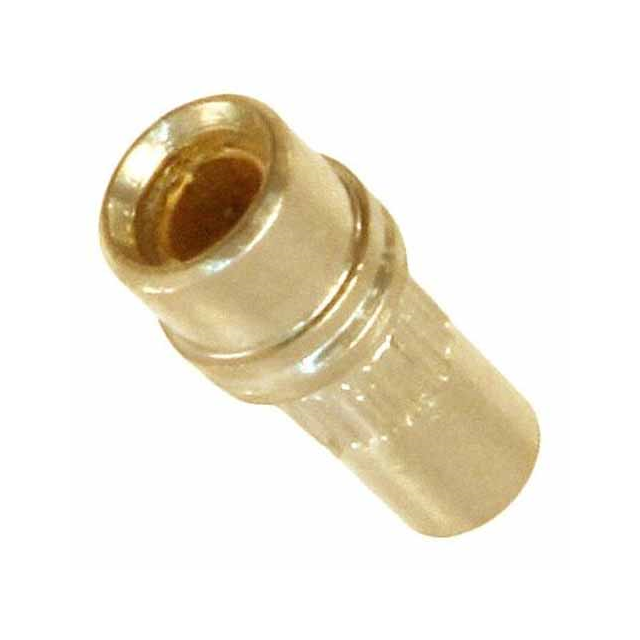

0.8MM SOCKET ASSY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

0.8MM SOCKET ASSY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Socket Depth	Socket Depth	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Tail Type	Length - Overall	Length - Overall	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. H8502-05	0.183 in	4.65 mm	Gold	0.033 "	0.85 mm	0.6 mm	0.024 "	Beryllium Copper	No Tail	0.232 in	5.89 mm	Knurled Press-Fit	2.67 mm	0.105 in	5.01 N	1.5 N	-55 °C	125 °C	0.077 " 1.96 mm	0.075 " 1.91 mm
Harwin Inc. H8502-01	0.183 in	4.65 mm	Gold	0.033 "	0.85 mm	0.6 mm	0.024 "	Beryllium Copper	No Tail	0.232 in	5.89 mm	Knurled Press-Fit	2.67 mm	0.105 in	5.01 N	1.5 N	-55 °C	125 °C	0.077 " 1.96 mm	0.075 " 1.91 mm	5.9 µin	0.15 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40000	$ 0.27
Newark	Each	1000	$ 0.35

General part information

Pin Receptacle Connector 0.024" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Press-Fit, Knurled
