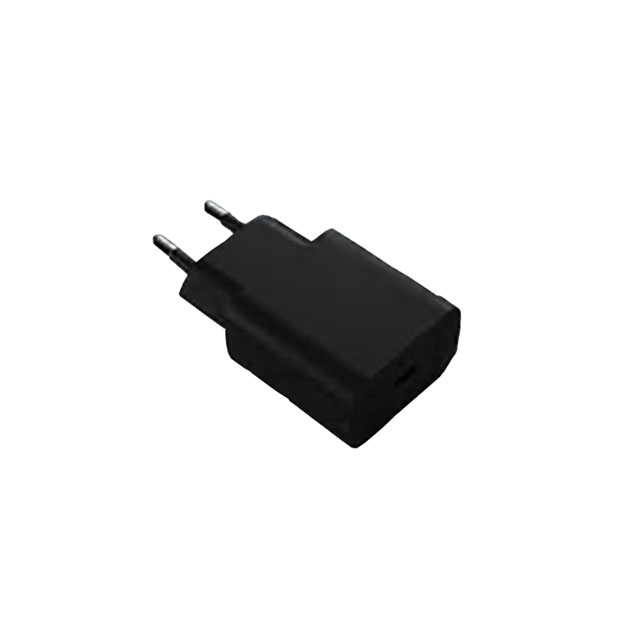

AQ15E-050A

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	AQ15E-050A

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	15 W
Region Utilized	Europe
Size / Dimension [x]	2.28 in
Size / Dimension [x]	58 mm
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	23.3 mm
Size / Dimension [z]	0.92 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Input Connector	Applications	Form	Power (Watts)	No Load Power Consumption [Max]	Efficiency	Approval Agency	Input Type	Output Connector	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]
Phihong USA AQ15E-050A	2.28 in	23.3 mm	1.57 "	58 mm	0.92 "	40 mm	5 V	CEE 7/16	ITE (Commercial)	Wall Mount (Class II)	15 W	75 mW	Level VI	CB CE cULus	Fixed Blade	USB C Receptacle	3 A	Europe	40 °C	0 °C	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.75

General part information

5V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
