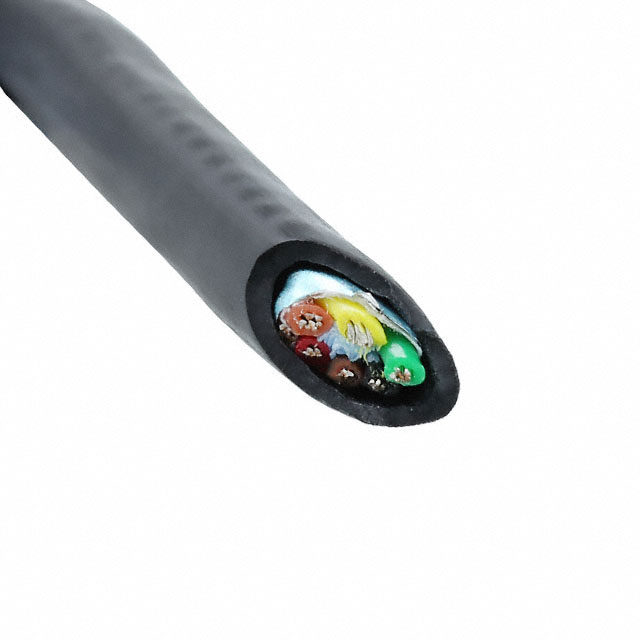

25006 BK199

Active

ALPHA WIRE

CABLE 6COND 22AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 22AWG BLACK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25006 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Cable Type	Conductor Material	Number of Conductors	Features	Voltage	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Length [x]	Length [x]	Length	Spool Size	Spool Size
ALPHA WIRE 25006 SL199	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	7	30 AWG	Polyurethane (PU)	0.219 in	5.56 mm	22 AWG	Multi-Conductor	Copper Tinned	6	Biological Compatibility Rip Cord	300 V	ISO 10993 UL Style 20668	-30 ░C	90 °C	Slate
ALPHA WIRE 25006 BK005	Poly-Vinyl Chloride (PVC)			7	30 AWG	Polyurethane (PU)	0.219 in	5.56 mm	22 AWG	Multi-Conductor	Copper Tinned	6	Biological Compatibility Rip Cord	300 V	ISO 10993 UL Style 20668	-30 ░C	90 °C	Black	30.5 m	100 ft
ALPHA WIRE 25006 BK199	Poly-Vinyl Chloride (PVC)			7	30 AWG	Polyurethane (PU)	0.219 in	5.56 mm	22 AWG	Multi-Conductor	Copper Tinned	6	Biological Compatibility Rip Cord	300 V	ISO 10993 UL Style 20668	-30 ░C	90 °C	Black			Enter Number of Feet in Order Quantity	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Black 22 AWG Enter Number of Feet in Order Quantity
