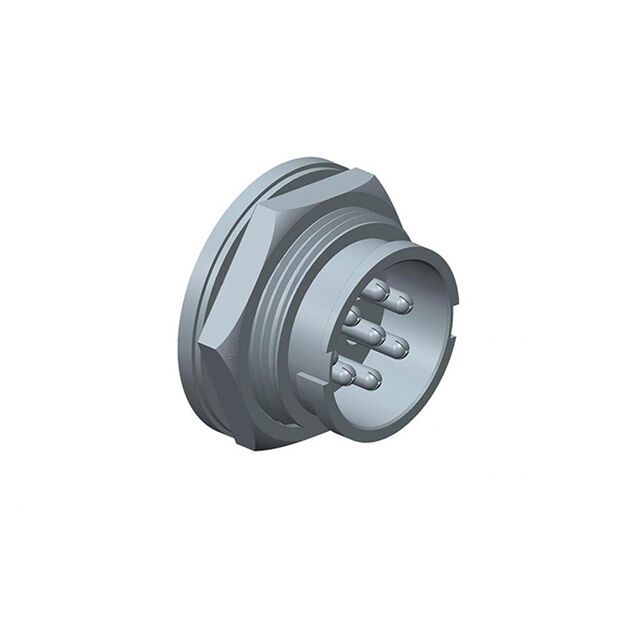

ADC-06PMMS-LC7001

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS C

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS C

Technical Specifications

Parameters and characteristics for this part

Specification	ADC-06PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Fastening Type	Shell Material	Number of Positions	Voltage Rating	Current Rating (Amps)	Shell Size - Insert	Contact Finish - Mating	Ingress Protection	Mounting Feature	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Connector Type	Color	Primary Material	Shielding	Contact Material	Material Flammability Rating
Amphenol LTW ADC-06PMMS-LS7001	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	6	250 VAC	20 A	D	Gold	IP67 - Dust Tight Waterproof	Bulkhead - Front Side Nut Flange	Polyamide (PA) Nylon Glass Filled	-40 °C	105 ░C	Keyed	Male Pins Receptacle	Black	Plastic	Unshielded	Copper Alloy	UL94 V-0
Amphenol LTW ADC-06PMMS-LC7001	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	6	250 VAC	20 A	D	Gold	IP67 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	-40 °C	105 ░C	Keyed	Male Pins Receptacle	Black	Plastic	Unshielded	Copper Alloy	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
