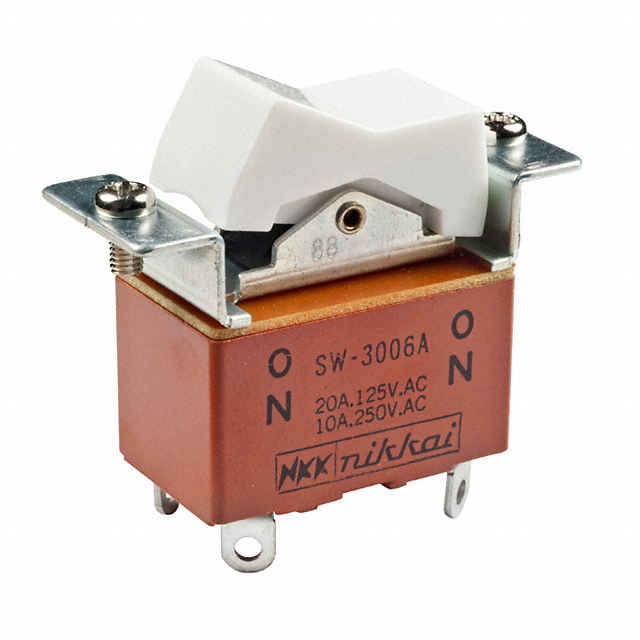

ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SW3006A
ActiveNKK Switches
ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW3006A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 20 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | Dust Proof |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SW3006 Series
The SW3006A is a DPDT non-illumination medium capacity Rocker Switch with ON-None-ON operation and solder-lug terminals. It has white urea resin rocker, steel with chromate plating over zinc plating mounting frame, melamine phenol case with phenolic resin case cover and insulator.
