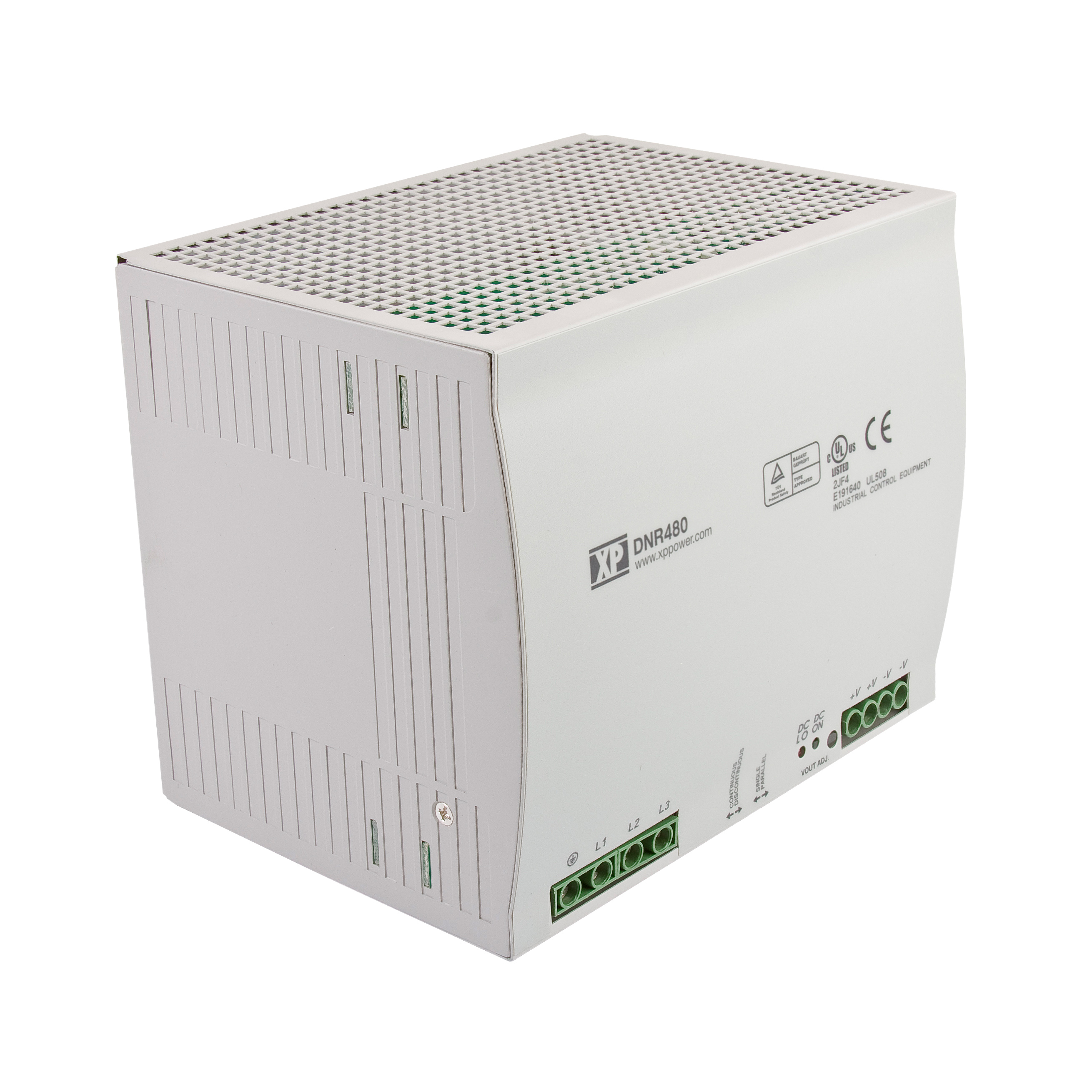

DNR480TS48-I

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 48V 480W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 48V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	DNR480TS48-I

AC Voltage - Input [Max]	575 VAC
AC Voltage - Input [Min]	340 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Current - Output (Max) [Max]	10 A
Efficiency	91 %
Features	Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Power (Watts)	480 W
Size / Dimension [x]	4.39 in
Size / Dimension [x]	111.3 mm
Size / Dimension [y]	5.91 in
Size / Dimension [y]	150 mm
Size / Dimension [z]	123.6 mm
Size / Dimension [z]	4.87 in
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Voltage - Isolation	Applications	Number of Outputs	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Standard Number	Input Type	Features	Current - Output (Max) [Max]
XP POWER DNR480TS24-I	3000 V	Hazardous Locations Industrial ITE (Commercial)	1	480 W	90 %	5.91 in	123.6 mm	150 mm	4.39 in	111.3 mm	4.87 in	24 V	340 VAC	575 VAC	62368-1	AC	Adjustable Output Load Sharing	20 A
XP POWER DNR480TS48-I	3000 V	Hazardous Locations Industrial ITE (Commercial)	1	480 W	91 %	5.91 in	123.6 mm	150 mm	4.39 in	111.3 mm	4.87 in	48 V	340 VAC	575 VAC		AC	Adjustable Output Load Sharing	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 48V 480W
