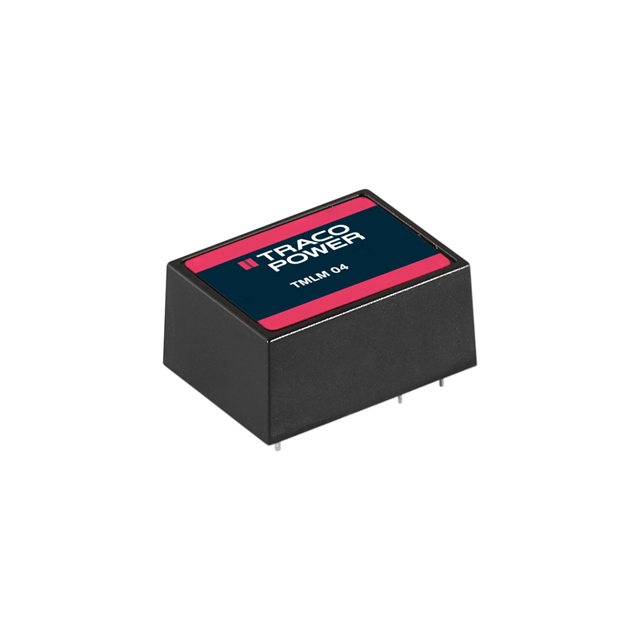

TMLM 04103
ActiveTraco Power
AC/DC CONVERTER 3.3V 4W
Deep-Dive with AI
Search across all available documentation for this part.
TMLM 04103
ActiveTraco Power
AC/DC CONVERTER 3.3V 4W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMLM 04103 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | 67 % |
| Features | Universal Input |
| Line Regulation | 0.3 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 1.44 " |
| Size / Dimension [x] | 36.5 mm |
| Size / Dimension [y] | 1.06 in |
| Size / Dimension [y] | 27 mm |
| Size / Dimension [z] | 0.67 in |
| Size / Dimension [z] | 17.1 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.25 | |
| 10 | $ 17.68 | |||
| 25 | $ 17.09 | |||
| 50 | $ 16.65 | |||
| 100 | $ 16.23 | |||
| 250 | $ 15.69 | |||
| 500 | $ 15.29 | |||
Description
General part information
TMLM 04 Series
Enclosed AC DC Converters 1 Output 3.3V 1.2A 90 ~ 264 VAC, 120 ~ 370 VDC Input
