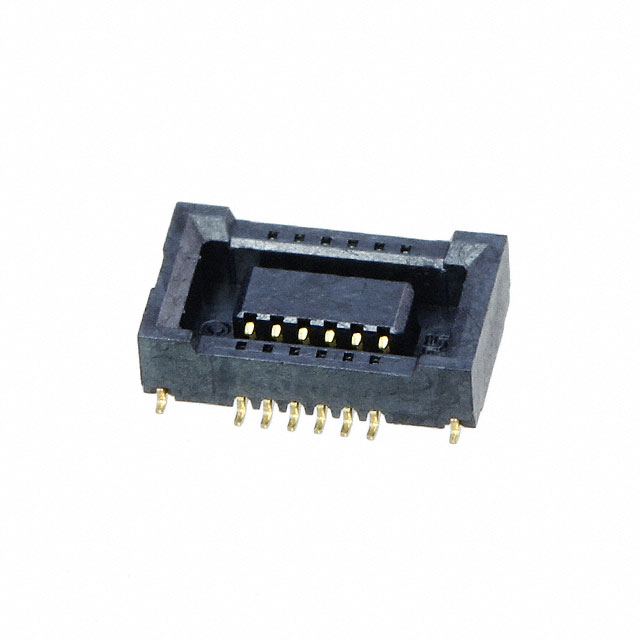

DF40B-12DS-0.4V(58)
ActiveHirose Electric USA, Inc.
0.4MM PITCH, 1.5-4.0MM HEIGHT, BOARD TO BOARD / FPC TO BOARD CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF40B-12DS-0.4V(58)
ActiveHirose Electric USA, Inc.
0.4MM PITCH, 1.5-4.0MM HEIGHT, BOARD TO BOARD / FPC TO BOARD CONNECTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF40B-12DS-0.4V(58) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.057 in |
| Height Above Board [z] | 1.45 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 0.82 | ||
| 10 | $ 0.69 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.51 | |||
| Tape & Reel (TR) | 1000 | $ 0.35 | ||
| 2000 | $ 0.32 | |||
| 3000 | $ 0.31 | |||
| 5000 | $ 0.30 | |||
| 7000 | $ 0.29 | |||
| 10000 | $ 0.28 | |||
| 25000 | $ 0.25 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.46 | |
| 5000 | $ 0.40 | |||
Description
General part information
DF40B Series
12 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
