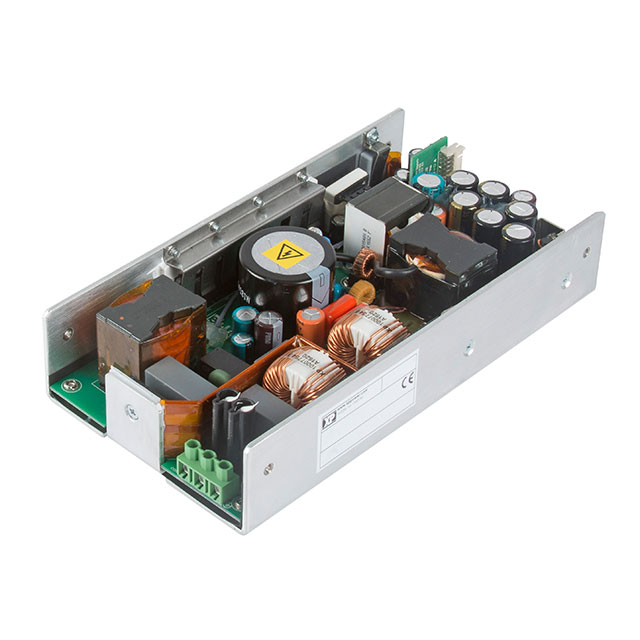

CMP250PS24

Obsolete

XP POWER

AC/DC CONVERTER 24V 250W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC CONVERTER 24V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	CMP250PS24

Applications	ITE (Commercial), Medical
Current - Output 1	10.4 A
Efficiency	89 %
Features	Universal Input, Load Sharing, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	250 W
Size / Dimension [x]	7.5 in
Size / Dimension [x]	190.6 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Standard Number	Voltage - Output 1	Type	Mounting Type	Applications	Features	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Power (Watts)
XP POWER CMP250PS36	62368-1	36 V	Open Frame	Chassis Mount	ITE (Commercial) Medical	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	6.9 A	1.57 "	39.9 mm	7.5 in	101.6 mm	4 "	190.6 mm	1	4000 V	264 VAC	80 VAC	89 %	248 W
XP POWER CMP250PS24	62368-1	24 V	Open Frame	Chassis Mount	ITE (Commercial) Medical	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	10.4 A	1.57 "	39.9 mm	7.5 in	101.6 mm	4 "	190.6 mm	1	4000 V	264 VAC	80 VAC	89 %	250 W
XP POWER CMP250PS48	62368-1	48 V	Open Frame	Chassis Mount	ITE (Commercial) Medical	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	5.2 A	1.57 "	39.9 mm	7.5 in	101.6 mm	4 "	190.6 mm	1	4000 V	264 VAC	80 VAC	89 %	250 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 80 ~ 264 VAC Input
