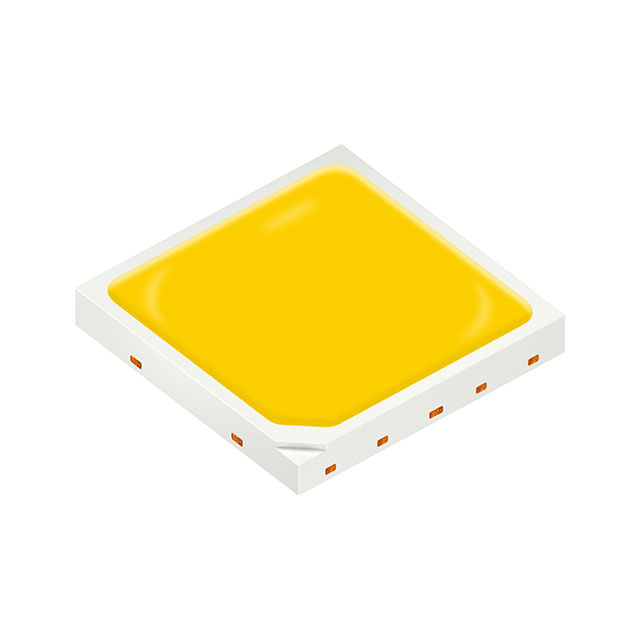

GW Q9LR31.PM-M4N3-XX55-1-45-R18
Obsoleteams-OSRAM USA INC.
LED OSCONIQ NEUT WHT 4000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW Q9LR31.PM-M4N3-XX55-1-45-R18
Obsoleteams-OSRAM USA INC.
LED OSCONIQ NEUT WHT 4000K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW Q9LR31.PM-M4N3-XX55-1-45-R18 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 265 mA |
| Current - Test | 45 mA |
| Flux @ 85°C, Current - Test | 260 lm |
| Flux @ 85°C, Current - Test [Max] | 310 lm |
| Flux @ 85°C, Current - Test [Min] | 210 lm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [diameter] | 1.5 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 22.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.66 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.66 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.45 | |||
| Tape & Reel (TR) | 1500 | $ 0.32 | ||
Description
General part information
GWQ9LR31 Series
LED Lighting OSCONIQ® S 5050 White, Neutral 4000K 22.1V 45mA 120° 2020 (5050 Metric)
