704.403.0

Active

EAO

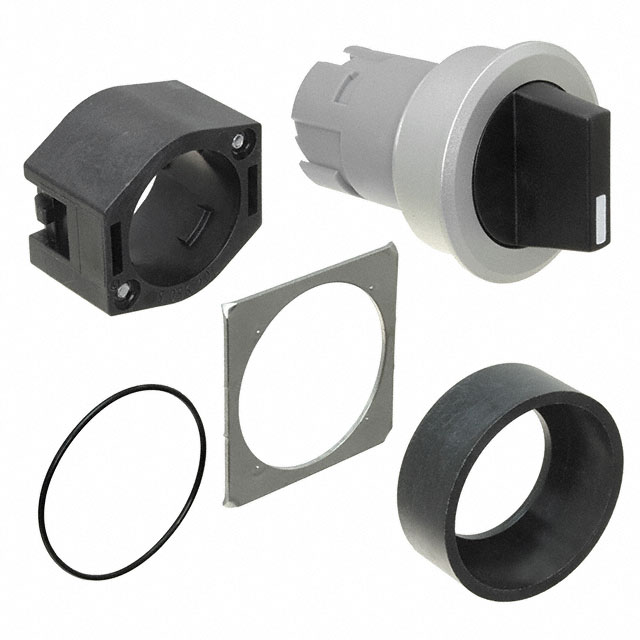

SWITCH ACTUATOR, EAO 04 SERIES SELECTOR SWITCHES, 704 SERIES

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATOR, EAO 04 SERIES SELECTOR SWITCHES, 704 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	704.403.0

(Select First, Then Apply Filters) Compatible Series	04, EAO
Actuator Type	Selector
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Maintained

Part	Actuator Type	Requires	Type	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Illumination
EAO 704.403.0I	Selector	Contact Block(s) Illumination Source	Maintained	04 EAO	22.3 mm	Illuminated
EAO 704.403.018I	Selector	Contact Block(s) Illumination Source	Maintained	04 EAO	30.5 mm	Illuminated
EAO 704.403.0	Selector	Contact Block(s)	Maintained	04 EAO	22.3 mm	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated
