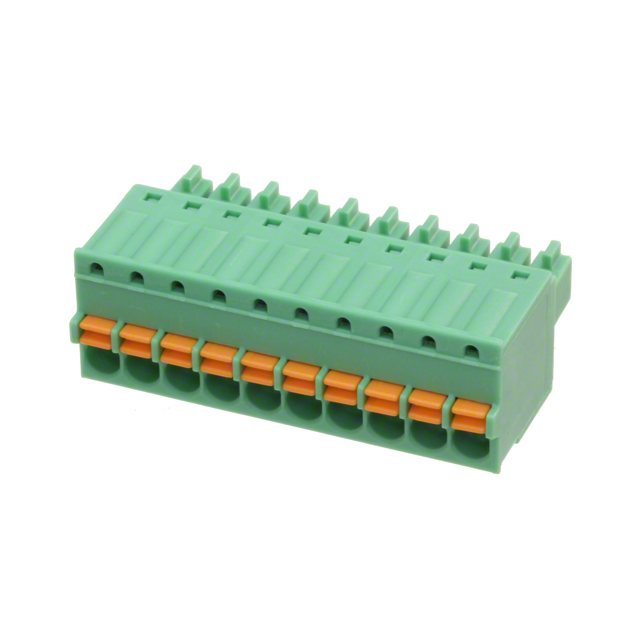

1939989

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 3.5MM PITCH PLUG 26-16AWG SPRING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1939989

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 3.5MM PITCH PLUG 26-16AWG SPRING

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1939989

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height [custom]	0.488 in
Insulation Height [custom]	12.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	10
Termination Style	Screwless - Push-In Spring
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²
Wire Strip Length	9 mm

FK-MCP Series

Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR

Part	Type	Material Flammability Rating	Number of Levels	Insulation Height [custom]	Insulation Height [custom]	Pitch [x]	Pitch [x]	Contact Mating Finish	Mounting Type	Housing Material	Features	Number of Positions	Current - IEC	Color	Wire Strip Length	Voltage - IEC	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Current - UL	Positions Per Level	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height
Phoenix Contact 1851342	Plug Female Sockets	UL94 V-0	1	0.488 in	12.4 mm	0.15 in	3.81 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon	Mating Flange	13	8 A	Green	9 mm	320 V	Push-In Spring Screwless - Leg Spring	28 AWG	16 AWG	300 V	8 A	13	0.14 mm˛	1.5 mm˛
Phoenix Contact 1851371	Plug Female Sockets	UL94 V-0	1	0.488 in	12.4 mm	0.15 in	3.81 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon	Mating Flange		8 A	Green	9 mm	320 V	Push-In Spring Screwless - Leg Spring	28 AWG	16 AWG	300 V	8 A	16	0.14 mm˛	1.5 mm˛	16
Phoenix Contact 1940101	Plug Female Sockets	UL94 V-0	1	0.488 in	12.4 mm	0.138 in	3.5 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon	Mating Flange		8 A	Green	9 mm	320 V	Screwless - Push-In Spring	28 AWG	16 AWG	300 V	8 A	3				0.14 mm²	1.5 mm²
Phoenix Contact 1939989	Plug Female Sockets	UL94 V-0	1	0.488 in	12.4 mm	0.138 in	3.5 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon		10	8 A	Green	9 mm	320 V	Screwless - Push-In Spring	28 AWG	16 AWG	300 V	8 A	10				0.14 mm²	1.5 mm²
Phoenix Contact 1939960	Plug Female Sockets	UL94 V-0	1	0.488 in	12.4 mm	0.138 in	3.5 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon		7	8 A	Green	9 mm	320 V	Screwless - Push-In Spring	28 AWG	16 AWG	300 V	8 A	7	0.14 mm˛	1.5 mm˛
Phoenix Contact 1817369	Plug Female Sockets	UL94 V-0	1			0.138 in	3.5 mm	Tin	Free Hanging (In-Line)	Polyamide (PA) Nylon	Ejector Latches Retention Latches (Non-Wire Side)	15	8 A	Green	9 mm	320 V	Screwless - Push-In Spring	28 AWG	16 AWG	320 V	8 A	15				0.14 mm²	1.5 mm²	0.56 in	14.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.46
		10	$ 16.99
		50	$ 15.88
		100	$ 14.61
		250	$ 14.33
Sager	N/A	50	$ 18.69
		100	$ 18.02

Description

General part information

FK-MCP Series

Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR
