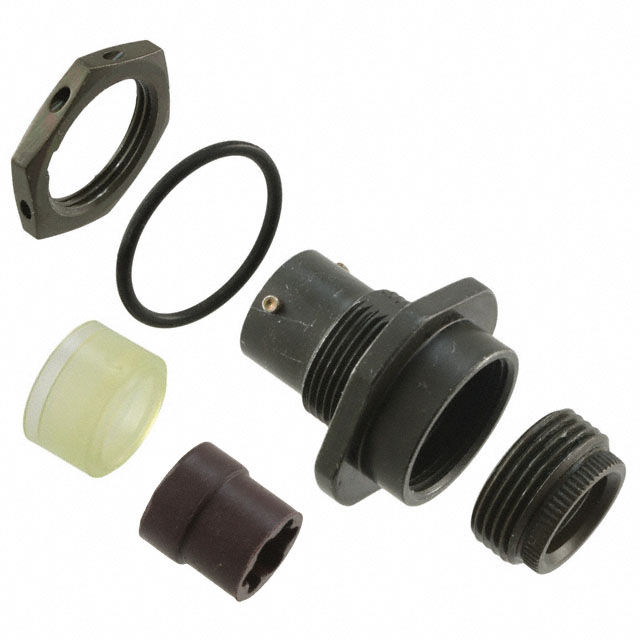

PT07E-10-6S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PT07E-10-6S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	10-6
Shielding	Unshielded

Part	Shielding	Applications	Fastening Type	Contact Material	Orientation	Number of Positions	Insert Material	Ingress Protection	Connector Type	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Feature	Primary Material	Shell Material	Color	Backshell Material, Plating	Shell Size - Insert	Shell Finish	Features
Amphenol Industrial Operations PT07E16-8S-152	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Bayonet Lock	Copper Alloy	N	8	Neoprene	Environment Resistant	Receptacle Female Sockets	MIL-DTL-26482 Series I	-55 °C	125 °C	Gold	Bulkhead - Front Side Nut
Amphenol Industrial Operations PT07E-10-6S	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Copper Alloy	N	6	Neoprene	Environment Sealed	Receptacle Female Sockets	MIL-DTL-26482 Series I	-55 °C	125 °C	Gold	Bulkhead - Front Side Nut	Metal	Aluminum	Olive Drab	Aluminum Olive Drab Cadmium	10-6	Olive Drab Chromate over Cadmium	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
