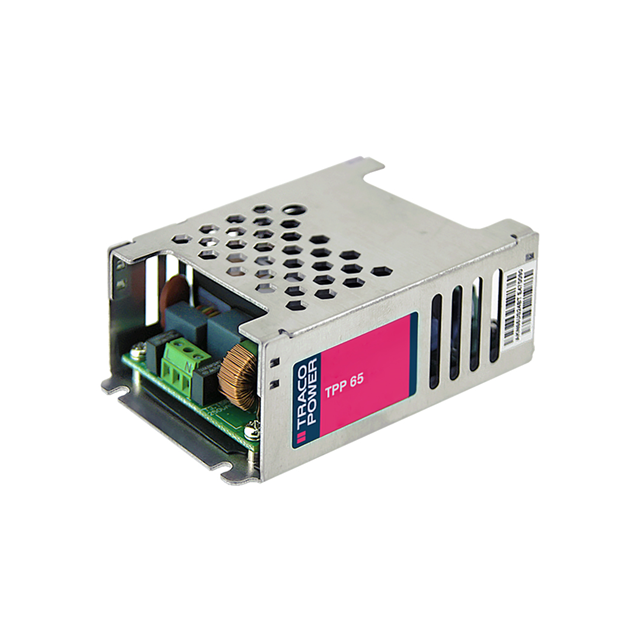

TPP 65-221

Active

Traco Power

AC/DC CONVERTER 12V 5V 65W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 5V 65W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Applications	Voltage - Isolation	Efficiency	Number of Outputs	Power (Watts)	Current - Output 2	Voltage - Output 2
Traco Power TPP 65-112A	CB CE cURus	60601-1	2.38 "	1.31 "	60.5 mm	3.53 "	33.3 mm	89.7 mm	5.42 A	85 VAC 120 VDC	264 VAC 370 VDC	12 V	Chassis Mount	85 °C	-40 °C	Adjustable Output Universal Input	Enclosed	Medical	4000 V	93 %	1
Traco Power TPP 65-221	CB CE cURus		2.38 "	1.36 "	60.5 mm	4.03 in	34.5 mm	102.4 mm	5.42 A	85 VAC 120 VDC	264 VAC 370 VDC	12 V	Chassis Mount	85 °C	-40 °C	Universal Input	Enclosed	Medical	4000 V	90 %	2	105 W	8 A	5 V
Traco Power TPP 65-124A	CB CE cURus	60601-1	2.38 "	1.31 "	60.5 mm	3.53 "	33.3 mm	89.7 mm	2.71 A	85 VAC 120 VDC	264 VAC 370 VDC	24 V	Chassis Mount	85 °C	-40 °C	Adjustable Output Universal Input	Enclosed	Medical	4000 V	94 %	1
Traco Power TPP 65-105A-J	CB CE cURus		2 in	0.94 in	50.8 mm	3 "	23.9 mm	76.2 mm	10 A	85 VAC 120 VDC	264 VAC 370 VDC	5 V	Chassis Mount	85 °C	-40 °C	Universal Input	Open Frame	Medical	4000 V	90 %	1	50 W
