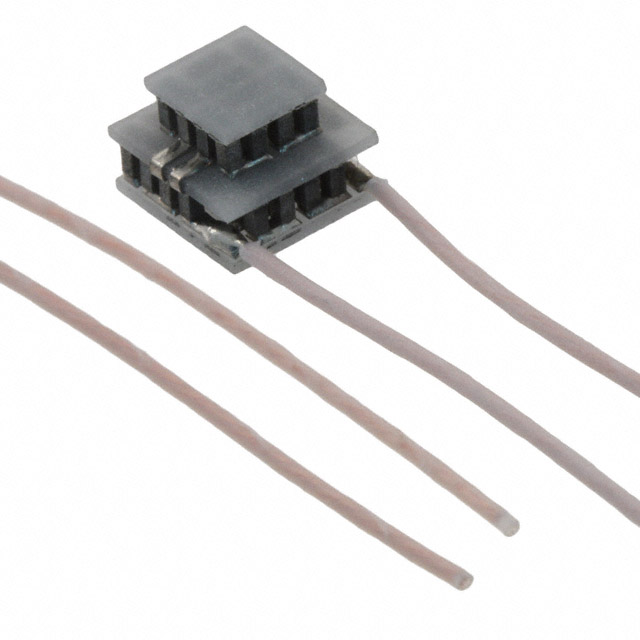

9320002-301

Active

Laird Thermal Systems, Inc.

PELTIR MS2,024,06,06,11,11,11,W2

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,024,06,06,11,11,11,W2

Technical Specifications

Parameters and characteristics for this part

Part	Number of Stages	Voltage - Max [Max]	Current - Max [Max]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature	Features	Qmax @ Th	Delta Tmax @ Th
Laird Thermal Systems, Inc. 9320002-303	2	2.2 V	1.1 A	4.6 mm	6.1 mm	6.1 mm	80 °C	Lead Wires Sealed - Epoxy	0.8 W	25 °C 92 °C
Laird Thermal Systems, Inc. 9320002-301	2	2.2 V	1.1 A	4.6 mm	6.1 mm	6.1 mm	80 °C	Lead Wires Non-Sealed	0.8 W	25 °C 92 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 0.8W @ 25°C 1.1 A 80°C
