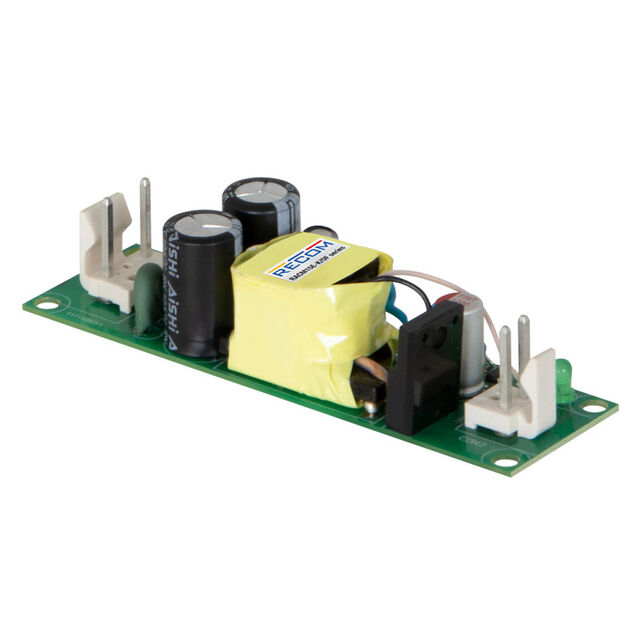

RACM15E-30SK/OF
ActiveRECOM Power
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, HOUSEHOLD, LABORATORY, MEDICAL & INDUSTRIAL, 1 OUTPUT
Deep-Dive with AI
Search across all available documentation for this part.
RACM15E-30SK/OF
ActiveRECOM Power
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, HOUSEHOLD, LABORATORY, MEDICAL & INDUSTRIAL, 1 OUTPUT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RACM15E-30SK/OF |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB Scheme, CE, cURus, FCC, UKCA |
| Current - Output 1 | 500 mA |
| Efficiency | 86 % |
| Features | Universal Input, DC Input Capable, Baseplate, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 3.1 in |
| Size / Dimension [x] | 78.7 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 20.3 mm |
| Size / Dimension [z] | 0.8 " |
| Standard Number | 60335-1, 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 275 VAC |
| Voltage - Input [Min] | 120 VDC, 80 VAC |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RACM15E-K Series
15W AC/DC-CONVERTER 'POWERLINE' OF 4.2KV REG
