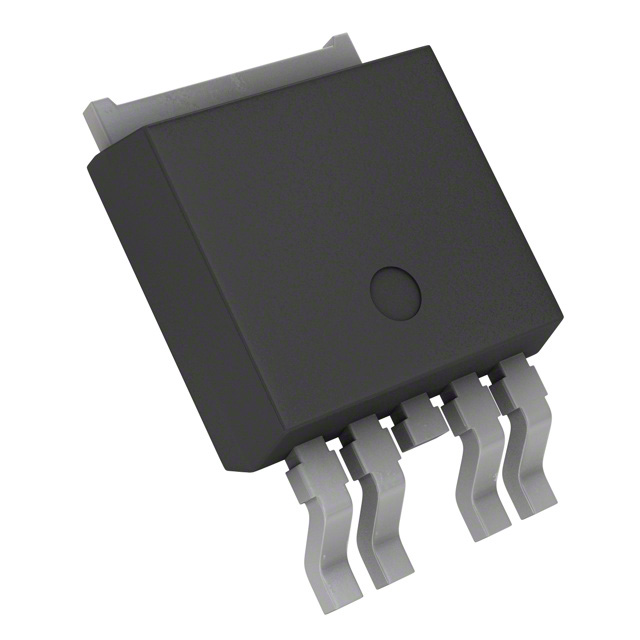

BD00C0AWFPS-ME2
NRNDLDO, AEC-Q100, ADJ, 3-15V, 1A, TO-252-5
Deep-Dive with AI
Search across all available documentation for this part.
BD00C0AWFPS-ME2
NRNDLDO, AEC-Q100, ADJ, 3-15V, 1A, TO-252-5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD00C0AWFPS-ME2 |
|---|---|
| Control Features | Enable |
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 2.5 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | DPAK (4 Leads + Tab), TO-252-5, TO-252AD |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55 dB |
| Qualification | AEC-Q100 |
| Voltage - Input (Max) [Max] | 25 V |
| Voltage Dropout (Max) [Max] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.65 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.05 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 2.65 | ||
| 10 | $ 1.71 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.05 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.90 | |||
| Tape & Reel (TR) | 2000 | $ 0.85 | ||
| 4000 | $ 0.80 | |||
| 6000 | $ 0.77 | |||
| 10000 | $ 0.75 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.45 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.18 | |||
| 300 | $ 1.02 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.86 | |||
Description
General part information
BD00C0AWCP-V5 Series
ROHM's LDO regulators continue the trend towards increasing miniaturization and greater power efficiency and are optimized for power supplies of all types. The broad lineup includes low saturation fixed output types in 1A/2A/0.3A ratings, models with different output voltages and packages, and units with/without a shutdown switch. In addition, overcurrent and thermal shutdown circuits are integrated to prevent IC destruction due to output short-circuit and IC overload respectively.
