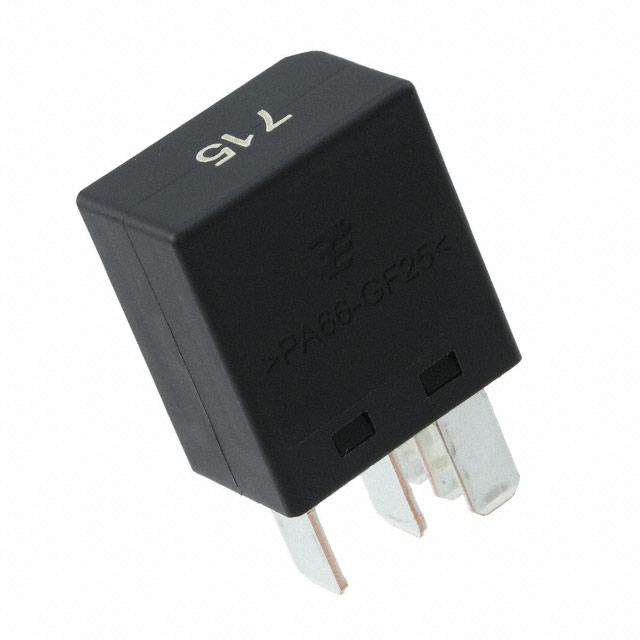

V23074A1002A403

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPDT 30A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPDT 30A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	V23074A1002A403

Coil Power	1.34 W
Coil Resistance	430 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Alloy
Contact Rating (Current)	30 A
Features	Resistor
Mounting Type	Socketable
Must Operate Voltage	14.4 VDC
Must Release Voltage	3.6 VDC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	24 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect

Part	Contact Rating (Current)	Features	Mounting Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Material	Contact Form	Termination Style	Must Operate Voltage	Switching Voltage	Must Release Voltage	Coil Power	Coil Type
TE Connectivity Potter & Brumfield Relays V23074A1002A403	30 A	Resistor	Socketable	430 Ohms	125 °C	-40 °C	24 VDC	Silver Alloy	SPDT (1 Form C)	Multiple Sizes Plug In Quick Connect	14.4 VDC	24 VDC	3.6 VDC	1.34 W	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 30A 24V
