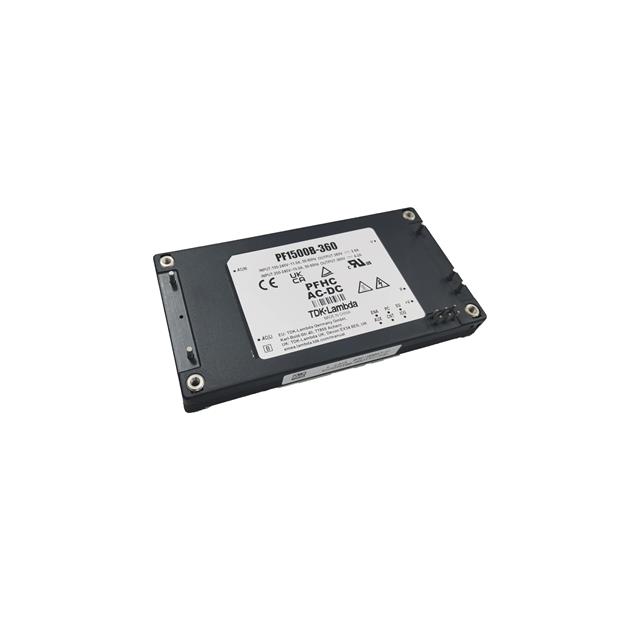

PF1500B-360/T

Active

TDK-LAMBDA

AC/DC CONVERTER 360V 4.2A 1512W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 360V 4.2A 1512W

Technical Specifications

Parameters and characteristics for this part

Specification	PF1500B-360/T

Applications	ITE (Commercial)
Approval Agency	IEC, CSA, UKCA, CE, UL
Current - Output (Max)	2.8 A
Efficiency	96.5 %
Features	Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Baseplate
Line Regulation	5 V
Load Regulation	10 V
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	1.008 kW
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	360 V

Part	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Efficiency	Standard Number	Package / Case	Type	Approval Agency	Voltage - Output 1	Load Regulation	Number of Outputs	Line Regulation	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]
TDK-LAMBDA PF1500B-360/T	1.008 kW	ITE (Commercial)	100 °C	-40 °C	2.8 A	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Adjustable Output Baseplate Remote On/Off Remote Sense Universal Input	96.5 %	62368-1	Full Brick	Enclosed	CE CSA IEC UKCA UL	360 V	10 V	1	5 V	Through Hole	85 VAC	265 VAC
TDK-LAMBDA PF1500B-360	1.008 kW	ITE (Commercial)	100 °C	-40 °C	2.8 A	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Adjustable Output Baseplate Remote On/Off Remote Sense Universal Input	96.5 %	62368-1	Full Brick	Enclosed	CE CSA IEC UKCA UL	360 V	10 V	1	5 V	Through Hole	85 VAC	265 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 220.00

General part information

Enclosed AC DC Converters 1 Output 360V 2.8A 85 ~ 265 VAC Input
