CS23-16IO2

Obsolete

IXYS

SCR 1.6KV 50A TO208AA

Search across all available documentation for this part.

Obsolete

IXYS

SCR 1.6KV 50A TO208AA

Technical Specifications

Parameters and characteristics for this part

Specification	CS23-16IO2

Current - Gate Trigger (Igt) (Max) [Max]	50 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	480 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	450 A
Current - Off State (Max) [Max]	3 mA
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max) [Max]	50 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

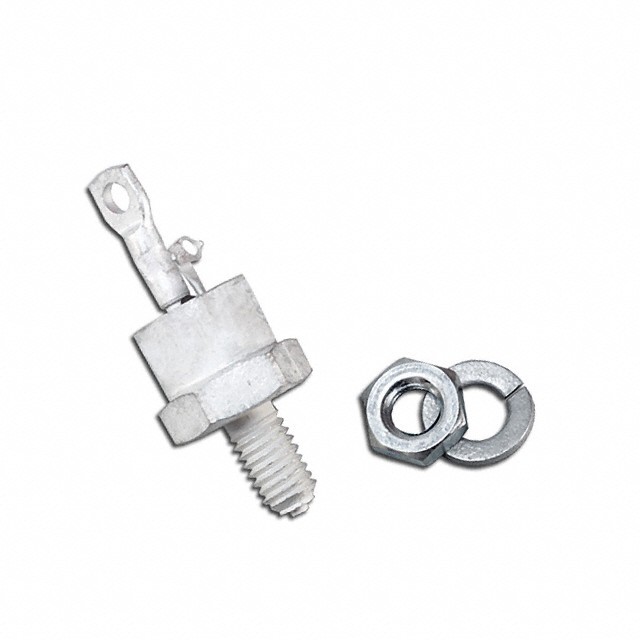

Package / Case	TO-48-3, TO-208AA, Stud
SCR Type	Standard Recovery
Supplier Device Package	TO-208AA (TO-48)
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV
Voltage - On State (Vtm) (Max) [Max]	1.8 V

Part	Voltage - On State (Vtm) (Max) [Max]	Voltage - Off State	SCR Type	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]
IXYS CS23-16IO2	1.8 V	1.6 kV	Standard Recovery	TO-208AA (TO-48)	2.5 V	Stud TO-208AA TO-48-3	125 °C	-40 °C	Chassis Stud Mount	100 mA	3 mA	480 A	450 A	50 A	32 A	50 mA
IXYS CS23-12IO2	1.8 V	1.2 kV	Standard Recovery	TO-208AA (TO-48)	2.5 V	Stud TO-208AA TO-48-3	125 °C	-40 °C	Chassis Stud Mount	100 mA	3 mA	480 A	450 A	50 A	32 A	50 mA
IXYS CS23-08IO2	1.8 V	800 V	Standard Recovery	TO-208AA (TO-48)	2.5 V	Stud TO-208AA TO-48-3	125 °C	-40 °C	Chassis Stud Mount	100 mA	3 mA	480 A	450 A	50 A	32 A	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR 1.6 kV 50 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
