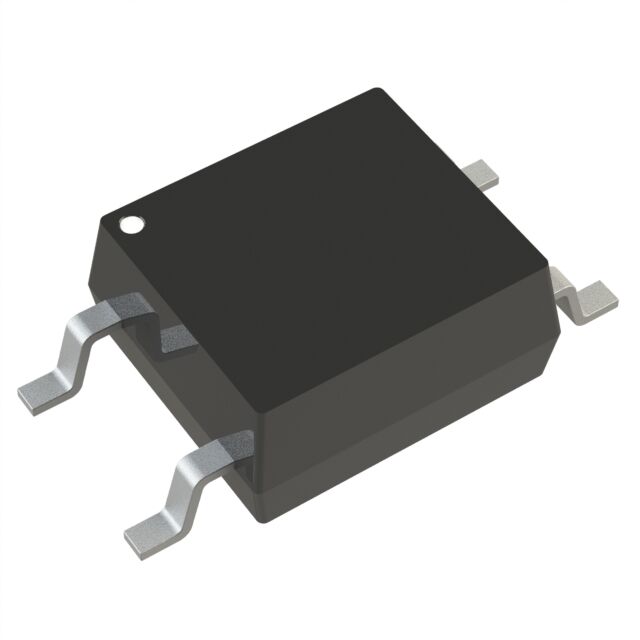

TLP176D(M,F)
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NO 50MA 0-200V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP176D(M,F) |
|---|---|
| Approval Agency | VDE, UL, cUL |
| Load Current | 200 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SOP |
| Package / Case | 0.173 in |
| Package / Case | 4.4 mm |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.15 VDC |
| Voltage - Load [Max] | 200 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLP176 Series
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
