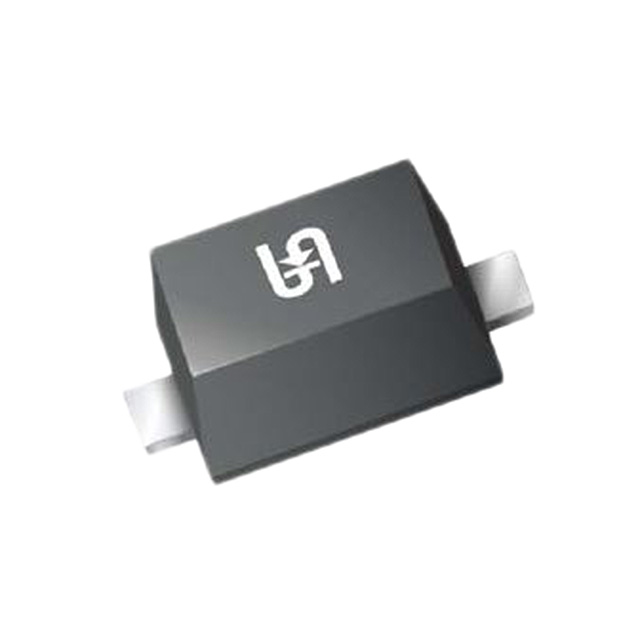

1N4148W RHG

Active

Taiwan Semiconductor Corporation

DIODE, 1V, 0.15A, SMT, SOD-123F ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE, 1V, 0.15A, SMT, SOD-123F ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148W RHG

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-123F
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-123F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Speed	Speed	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Voltage - Forward (Vf) (Max) @ If [Max]
Taiwan Semiconductor Corporation 1N4148W RHG	Surface Mount	SOD-123F	1 V	100 V	4 pF	4 ns	150 mA	5 µA	Any Speed	200 mA	SOD-123F	150 °C	-65 C	Standard
Taiwan Semiconductor Corporation 1N4148W-G RHG	Surface Mount	SOD-123		100 V	2 pF	4 ns	150 mA	2.5 µA	Any Speed	200 mA	SOD-123	150 °C	-65 C	Standard	1.25 V
Taiwan Semiconductor Corporation 1N4148	Through Hole	DO-35	1 V	100 V	4 pF	4 ns	150 mA	5 µA	Any Speed	200 mA	Axial DO-204AH DO-35	150 °C	-65 C	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 150mA Surface Mount SOD-123F
