UCC28880EVM-616

Obsolete

Texas Instruments

EVAL BOARD FOR UCC28880

Search across all available documentation for this part.

Obsolete

Texas Instruments

EVAL BOARD FOR UCC28880

Technical Specifications

Parameters and characteristics for this part

Part	Duty Cycle	Mounting Type	Supplier Device Package	Frequency - Switching	Voltage - Breakdown	Fault Protection	Output Isolation	Topology	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Start Up	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Power - Output	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Voltage - Output	Current - Output	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents	Board Type
Texas Instruments UCC28880D	55 %	Surface Mount	7-SOIC	62 kHz	700 V	Current Limiting Over Load Over Temperature Short Circuit	Non-Isolated	Buck Buck-Boost Flyback	7	8-SOIC	3.9 mm	0.154 in	105 °C	-40 °C	3.9 V	3.6 V	5 V
Texas Instruments UCC28880EVM-615																		1.25 W	85 VAC	265 VAC	AC/DC Non-Isolated	-12.5 V 12.5 V	100 mA	UCC28880	Non-Isolated	1	Board(s)	Fully Populated
Texas Instruments UCC28880DR	55 %	Surface Mount	7-SOIC	62 kHz	700 V	Current Limiting Over Load Over Temperature Short Circuit	Non-Isolated	Buck Buck-Boost Flyback	7	8-SOIC	3.9 mm	0.154 in	105 °C	-40 °C	3.9 V	3.6 V	5 V
Texas Instruments UCC28880EVM-616																		1.3 W	85 VAC	265 VAC	AC/DC Non-Isolated	5 V 13 V	100 mA	UCC28880	Non-Isolated	1	Board(s)	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

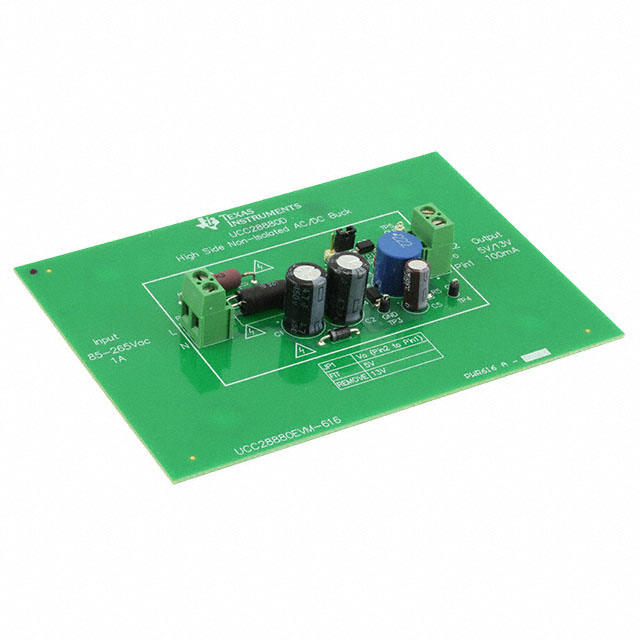

UCC28880 - AC/DC, Non-Isolated 1, Non-Isolated Outputs Evaluation Board
