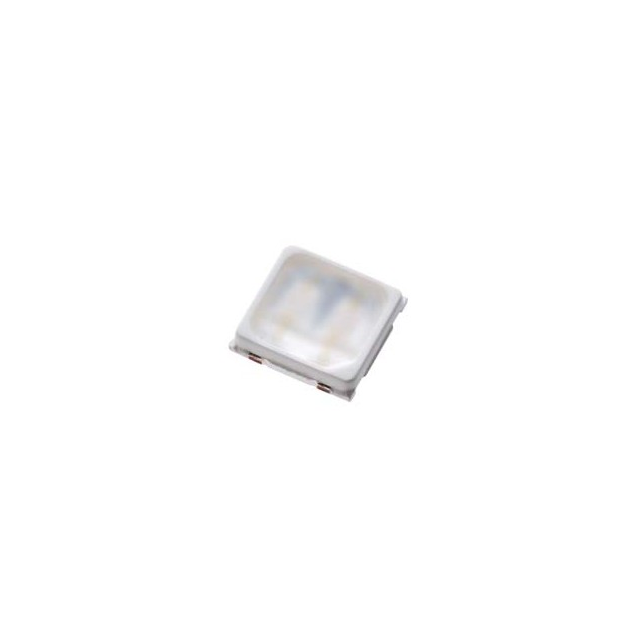

XI3030P/F3C-P1545R5S115251Z15/2N

Active

Everlight Electronics Co Ltd

LED FAR RED 730NM 1212

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED FAR RED 730NM 1212

Technical Specifications

Parameters and characteristics for this part

Specification	XI3030P/F3C-P1545R5S115251Z15/2N

Color	Red
Current - Max [Max]	200 mA
Current - Test	150 mA
Height - Seated (Max) [Max]	0.66 mm
Height - Seated (Max) [Max]	0.026 in
Luminous Flux @ Current/Temperature	70 mW
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	1212
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength	730 nm
Wavelength [Max]	745 nm
Wavelength [Min]	715 nm

Part	Supplier Device Package	Current - Max [Max]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Wavelength	Wavelength [Max]	Wavelength [Min]	Viewing Angle	Current - Test	Package / Case	Package / Case	Mounting Type	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature
Everlight Electronics Co Ltd XI3030P/B3C-D5565L6M360681Z15/2N	1212	200 mA	19 lm/W	6.4 V	0.66 mm	0.026 in	460 nm	465 nm	455 nm	120 °	150 mA	1212	3030 Metric	Surface Mount	Royal Blue	0.118 in	3 mm	3 mm	0.118 in
Everlight Electronics Co Ltd XI3030P/RK3C-D1025PAR160681Z15/2N	1212	200 mA	48 lm/W	6.4 V	0.66 mm	0.026 in	618 nm			120 °	150 mA	1212	3030 Metric	Surface Mount	Red	0.118 in	3 mm	3 mm	0.118 in	55 lm	36 lm	46 lm
Everlight Electronics Co Ltd XI3030P/F3C-P1545R5S115251Z15/2N	1212	200 mA		1.95 V	0.66 mm	0.026 in	730 nm	745 nm	715 nm		150 mA	1212	3030 Metric	Surface Mount	Red	0.118 in	3 mm	3 mm	0.118 in			70 mW
Everlight Electronics Co Ltd XI3030P/B3C-D5060T2T625312Z15/2N	1212			2.8 V	0.66 mm	0.026 in	455 nm				150 mA	1212	3030 Metric	Surface Mount	Royal Blue	0.118 in	3 mm	3 mm	0.118 in			190 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color XI3030P Red 730nm (715nm ~ 745nm) 1212 (3030 Metric)
