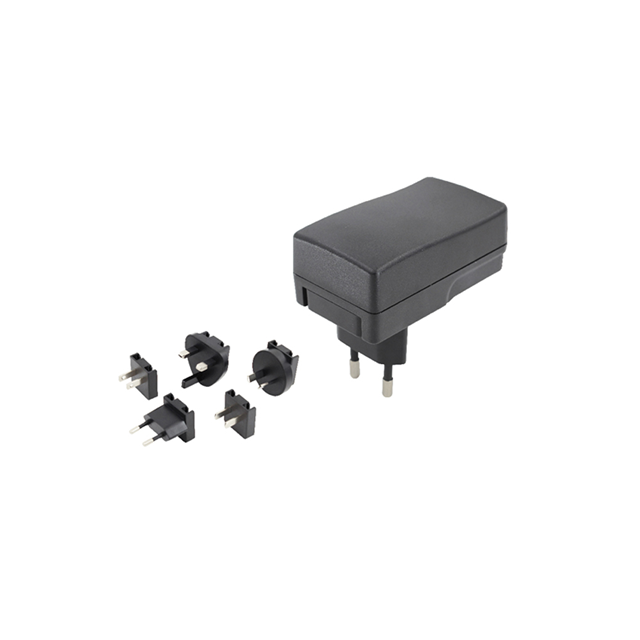

SLE06S0503B01

Active

SL POWER / Advanced Energy

WALL MOUNT AC ADAPTERS 6W 5VOUT 2.3MM CONTACTS REQUIRED

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

WALL MOUNT AC ADAPTERS 6W 5VOUT 2.3MM CONTACTS REQUIRED

Technical Specifications

Parameters and characteristics for this part

Specification	SLE06S0503B01

Applications	ITE (Commercial), Medical
Approval Agency	CE, GS, CCC, RCM, cURus, PSE, CB, cULus, KC, TUV
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	5 W
Region Utilized	International
Size / Dimension [x]	73.5 mm
Size / Dimension [x]	2.89 in
Size / Dimension [y]	42.5 mm
Size / Dimension [y]	1.67 "
Size / Dimension [z]	1.21 "
Size / Dimension [z]	30.7 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Wall Mount AC Adapters SLE06S0503C01

Part	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Form	Current - Output (Max) [Max]	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Power (Watts)	Efficiency	Approval Agency	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption [Max]	Input Connector
SL POWER / Advanced Energy SLE06S0903B01	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	1.5 m	59 in	90 VAC	264 VAC	Wall Mount (Class II)	600 mA	International	1.21 "	73.5 mm	42.5 mm	2.89 in	1.67 "	30.7 mm	Multi-Blade (Sold Separately)	5.4 W	CoC Tier 2 Level VI	CB CCC CE cULus cURus GS KC PSE RCM TUV	9 V	45 °C	0 °C	75 mW	Multi-Blade
SL POWER / Advanced Energy SLE06S0503B01	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	1.5 m	59 in	90 VAC	264 VAC	Wall Mount (Class II)	1 A	International	1.21 "	73.5 mm	42.5 mm	2.89 in	1.67 "	30.7 mm	Multi-Blade (Sold Separately)	5 W	CoC Tier 2 Level VI	CB CCC CE cULus cURus GS KC PSE RCM TUV	5 V	45 °C	0 °C	75 mW	Multi-Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wall Mount AC Adapters SLE06S0503C01
